Air Release Valve

Air Release Valve

Category

Air release valves automatically remove trapped air from pipelines to support stable flow and reliable system.


Air trapped inside a pressurized pipeline can gradually reduce the usable flow area, increase pumping demand and create unstable pressure conditions. Air release valves help remove this trapped air automatically while keeping the process fluid contained.

SVR Global supplies these solutions as an Air Release Valve Manufacturer in USA, with configurations designed for continuous air venting, high-volume air discharge and controlled air admission during different stages of pipeline operation.

What is an Air Release Valve?

An air release valve is an automatic float-operated valve normally installed at pipeline high points, pump discharge locations and other areas where air naturally collects.

As air enters the valve chamber, the liquid level falls and the float moves downward, opening the vent orifice. The trapped air is discharged until liquid rises again and lifts the float back into the closed position. This cycle takes place automatically while the system remains pressurized.

Types of Air Release Valves

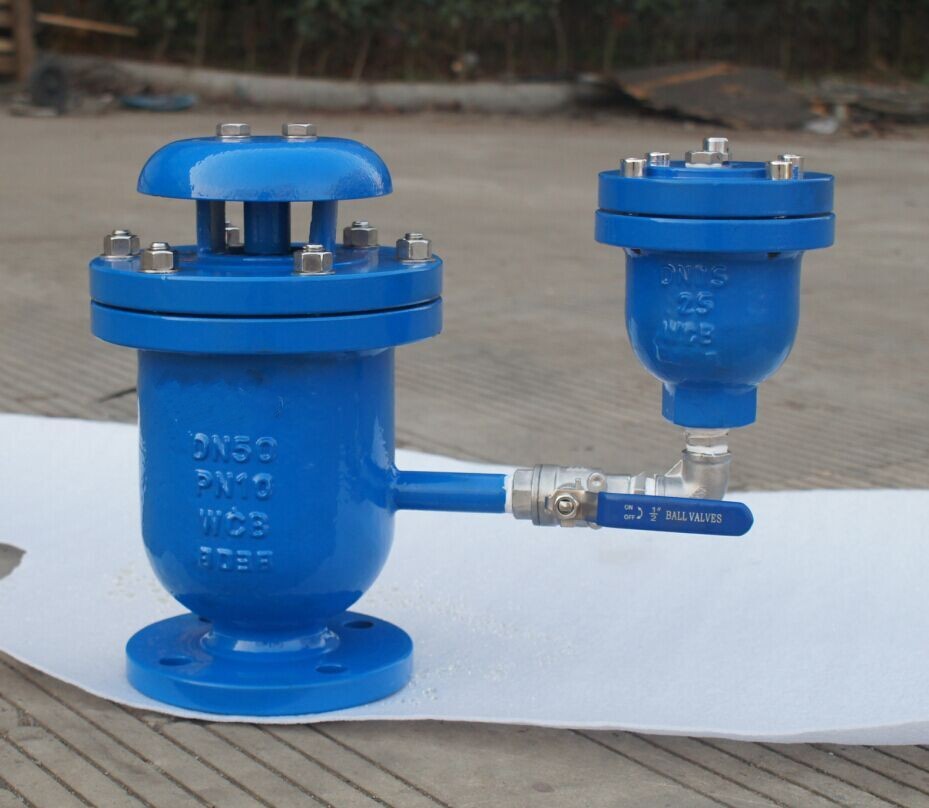

Combination Air Release Valve

Double Orifice Air Release Valve

Double Orifice Kinetic Air Valve

Single Orifice Air Valve

Air Release Valve Features

• Automatic float-operated air discharge

• Continuous release of trapped air during normal pipeline operation

• Large-orifice options for rapid air movement during filling or draining

• Resilient sealing for dependable closure after air is discharged

• Corrosion-resistant internal float and trim components

• Flanged and threaded configurations for different pipeline layouts

Air Release Valve Specifications

Specification

Available Configuration / Standard

Size Range

DN40-DN200

Pressure Rating

PN16-PN40; ASME Class 150-300

Material

Cast Iron, Ductile Iron, Stainless Steel

Grades / Construction Materials

ASTM A126 Class B; ASTM A536 Gr. 65-45-12; SS304 / SS316 internal components

Float Material

Stainless Steel, Engineered Polymer

Seat / Seal Material

NBR, EPDM, Buna-N

Orifice Configuration

Single Orifice, Double Orifice, Combination

End Connections

Flanged, Threaded

Coating

Fusion-Bonded Epoxy

Standards

AWWA C512; ASME B16.1; ASME B16.42; NSF/ANSI/CAN 61 and 372 for potable-water configurations

Industries Using Air Release Valves

• Water & Wastewater

• Municipal Water Distribution

• Irrigation Systems

• Desalination & Seawater Systems

• Mining & Dewatering

• Power Generation

• Industrial Process Water

• Pumping Stations



Showing all 4 products

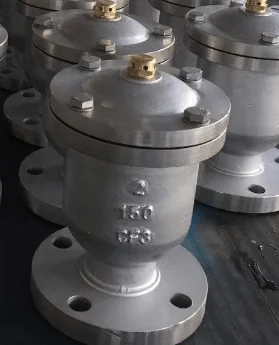

Single Orifice Air Valve

Single Orifice Air Valve

Single Orifice Air Valve 1. Body: Cast iron, Ductile Iron, Stainless Steel 2. Bucket: Cast iron, Ductile Iron, Stainless Steel 3. Float Ball: Stainless Steel 4. Gasket: NBR, EPDM 5. Inside Cover: Cast iron, Ductile Iron, Stainless Steel 6. Bolt: Carbon Steel, Stainless Steel 7. Outside Cover: Cast iron, Ductile Iron, Stainless Steel 8. Bolt: Carbon Steel, Stainless Steel 9. Bonnet: Cast iron, Ductile Iron, Stainless Steel 10. Cap : Cast iron, Ductile Iron 11. Stem: Stainless Steel 12. Stem Yoke: Stainless Steel 13. Plug: Stainless Steel 14. Top Plug: NBR+Stainless Steel 15. Plug Sleeve: Stainless Steel Nominal Diameter: DN40 to DN200 Nominal Pressure: Class150 to Class300, PN16 to PN40 Design and Manufacture Standard: DIN3352 Flanged End Dimension: DIN2501 Inspection and Test: BS6755 Dimensions Unit: mm PN16 DN D D1 D2 b H Z-фd W 40 150 110 84 18 224 4-ф19 166 50 165 125 99 20 236 4-ф19 178 65 185 145 118 20 244 4-ф19 199 80 200 160 132 22 248 8-ф19 202 100 220 180 156 24 284 8-ф19 233 150 285 240 211 26 324 8-ф23 282

DETAILS

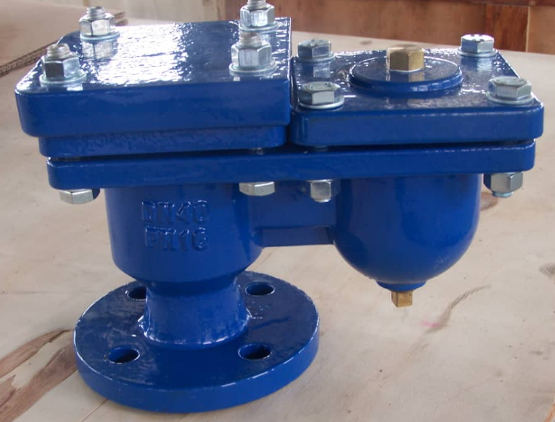

Double Orifice Kinetic Air Valve

Double Orifice Kinetic Air Valve

Double Orifice Kinetic Air Valve Body: Cast iron, Ductile Iron, Stainless Steel Bonnet: Cast iron, Ductile Iron, Stainless Steel Cap : Cast iron, Ductile Iron Float Ball: Stainless Steel Stem: Stainless Steel Stem Yoke: Stainless Steel Plug: Stainless Steel Gasket: NBR, EPDM Top Plug: NBR+Stainless Steel Plug Sleeve: Stainless Steel Nominal Diameter: DN40 to DN200 Nominal Pressure: Class150 to Class300, PN16 to PN40 Design and Manufacture Standard: DIN3352 Flanged End Dimension: DIN2501 Inspection and Test: BS6755 Dimensions Unit: mm PN16 DN L H 25 147 185 40 224 187 50 273 214 65 273 214 80 283 244 100 302 270 125 353 323 150 353 323 200 433 401 250 491 450

DETAILS
Double Orifice Air Release Valve

Double Orifice Air Release Valve

Double Orifice Air Valve Body: Ductile Iron, Cast Iron Ball: SS304 Bonnet: Ductile Iron, Cast Iron Gland: Ductile Iron, Cast Iron Cap Top: Ductile Iron, Cast Iron Washer: SS304, Carbon Steel Nut: SS304, Carbon Steel Bolt: SS304, Carbon Steel Gasket: NBR Stem: SS420 Stem Nut: SS420 Nominal Diameter: DN80 to DN200 Nominal Pressure: Class150 to Class300, PN16 to PN40 Design and Manufacture Standard: DIN3352 Flanged End Dimension: DIN2501 Inspection and Test: BS6755 Dimensions Unit:mm DN L H 50 418 351 80 454 375 100 492 419 150 595 440 200 698 475

DETAILS
