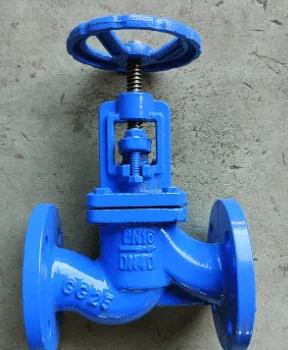

Cast Iron Globe Valve

Cast Iron Globe Valve Body: Cast Iron Bonnet: Cast Iron Disc: Cast iron Gasket: Graphite, PTFE Stem: Stainless Steel Packing: Graphite, PTFE Seat: Brass, Bronze Handwheel: Ductile Iron, Carbon Steel Nominal Diameter: DN15 to DN300 Nominal Pressure: Class150 to Class300, PN10 to PN64 End Connection: Flanged, Buttweld, Socketweld Dimension PN16 Unit: mm DN L H C D 15 130 165 100 95 20 150 180 100 105 25 160 195 120 115 32 180 205 120 140 40 200 235 160 150 50 230 250 200 165 65 290 285 200 185 80 310 335 240 200 100 350 370 240 220 125 400 435 280 250 150 480 475 280 285 200 600 555 400 340 250 730 650 520 405 300 850 695 520 460
