Electric Actuated 2 Piece Ball Valve

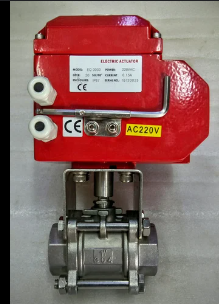

Electric Actuated 2 Piece Screwed Ball Valve Body Material: Carbon Steel, CF8M Ball Material: Stainless Steel Seat: PTFE, RTFE, PPL Nominal Diameter: DN15 to DN200 Nominal Pressure: 1000PSI End Connections: Screwed, Threaded Or Welded, Buttweld Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V Power Supply: 24V AC, 24V DC, 110V AC, 230V AC Actuation Type: Electric Actuated Dimensions DN D L H L1 8 11.6 68 100 100 10 12.7 68 100 100 15 15 72 130 130 20 20 82 130 130 25 25 90 165 165 32 32 112 165 165 40 38 120 190 190 50 50 145 190 190 65 65 185 250 250 80 80 210 250 250 100 100 268 280 280

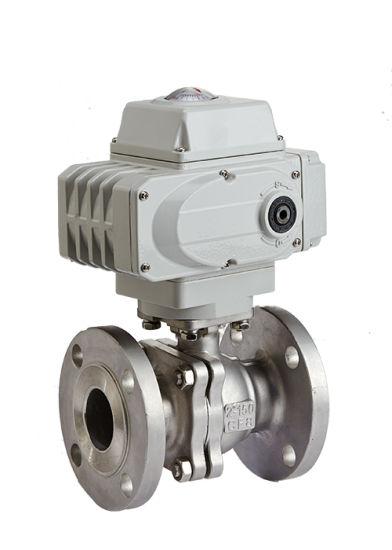

Electric Actuated 2 Piece Flanged Ball Valve Body Material: Carbon Steel, CF8M Ball Material: Stainless Steel Seat: PTFE, RTFE, PPL Nominal Diameter: DN15 to DN200 Nominal Pressure: PN1.0MPa to PN6.4MPa End Connections: Flanged Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V Power Supply: 24V AC, 24V DC, 110V AC, 230V AC Actuation Type: Electric Actuated Dimensions Unit: mm DN D3 D2 D1 D L B n-Φd 15 15 34.9 60.3 90 108 11.5 4-Φ14 20 20 42.9 69.9 100 117 13 4-Φ14 25 25 50.8 79.4 110 127 14.5 4-Φ14 32 32 63.5 88.9 115 140 16 4-Φ18 40 40 73 98.4 125 165 17.5 4-Φ18 50 50 92.1 120.7 150 178 19.5 4-Φ18 65 65 104.8 139.7 180 190 22.5 4-Φ18 80 80 127 152.4 190 203 24 8-Φ18 100 100 157.2 190.5 230 229 24 8-Φ18 125 125 185.7 215.9 255 356 24 8-Φ18 150 150 215.9 241.3 280 394 25.5 8-Φ28 200 200 269.9 298.5 345 457 29 14-Φ23
