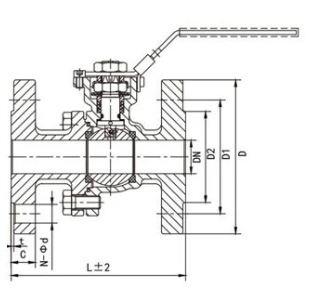

2 Piece Cast Steel Ball Valve

3 Piece Screwed Ball Valve 1. Body: Carbon Steel, Cast Iron, CF8, CF8M 2. Cap: Carbon Steel, Cast Iron, CF8, CF8M 3. Ball: Carbon Steel, Cast Iron, CF8, CF8M 4. Stem: SS304, SS316 5. Gland Nut: SS304 6. Seat: PTFE, RTFE 7. Seal: PTFE 8. Packing: PTFE 9. Thrust Washer: PTFE 10. Spring Washer: SS304 11. Stem Nut: SS304 12. Bolt: SS304 13. Nut: SS304 14. Spring Washer: SS304 15. Handle: Stainless Steel 16. Locking Device: Stainless Steel 17. Handle Sleeve: PVC Full Port or Reduced Port Investment cast stainless steel unibody Blow-out proof stem, Double reduced port Size: 1/4″ to 4″ Nominal Pressure: PN1.0 to PN2.5 Dimensions: Unit: mm SIZE D C L H W 1/4″ 11.6 14 65 50 120 3/8″ 12.7 17.5 65 50 120 1/2″ 15 22.7 65 60 120 3/4″ 20 27.5 75 64 130 1″ 25 34 85 71 154 1-1/4″ 32 42 100 79 154 1-1/2″ 38 49 125 86 185 2″ 50.8 60.5 150 95 185 2-1/2″ 65 76.5 190 130 250 3″ 80 90 210 142 250 4″ 100 108 268 170 280

3 Piece Flanged Ball Valve 1.Body: CF8, CF8M, Cast Iron, Carbon Steel 2. Cap: CF8, CF8M, Cast Iron, Carbon Steel 3. Ball: CF8, CF8M, Cast Iron, Carbon Steel 4. Stem: SS304, SS316 5. Gland Nut: SS304, SS316 6. Seat: PTFE, RTFE 7. Seal: PTFE 8. Packing: PTFE 9. Thrust Washer: PTFE 10. Spring Washer: SS304 11. Stem Nut: SS304 12. Bolt: SS304 13. Nut: SS304 14. Spring Washer: SS304 15. Handle: Stainless Steel 16. Locking Device: Stainless Steel 17. Handle Sleeve: PVC Full port or Reduced Port Investment casting Blow-out proof stem Anti-static device (option) Locking device Nominal Size: DN15 to DN100 Nominal Pressure: PN1.0 to PN4.0 Working Temperature: -20°C to +180°C Face to Face Dimension: DIN3202 Inspection Testing: API598, EN12266 Dimensions Unit: mm Size d D C G f T N-M L H H1 W W1 Kg 1/2″ 15 95 65 45 2 16 4-14 115 72 16.5 123 6.5 2.5 3/4″ 20 105 75 58 2 18 4-14 120 76 16.5 123 6.5 3.5 1″ 25 115 85 68 2 18 4-14 125 92 23.5 183 9.5 4.5 1 1/4″ 32 140 100 78 2 18 4-18 130 95 21.0 153 8 6.0 1 1/2″ 40 150 110 88 3 18 4-18 140 125 37.5 246 12 7.0 2″ 50 165 125 102 3 20 4-18 150 132 37.5 246 12 10.0 2 1/2″ 65 185 145 122 3 18 4-18 170 166 47.0 285 16 14.5 3″ 80 200 160 138 3 20 4-18 180 176 47.0 285 16 19.0 4″ 100 220 180 158 3 20 8-18 190 189 47.0 385 16 32.0

2 Piece Screwed Ball Valve Body: CF8, CF8M, Cast Iron, Carbon Steel Bonnet: CF8, CF8M, Cast Iron, Carbon Steel Ball: SS304 Stem: SS304 Gland Nut: SS304 Washer: SS304 Stem Nut: SS201 Seal Ring: PTFE Gasket: PTFE Thrust Washer: PTFE Packing: PTFE Handle: SS201 Handle Cover: Plastic Nominal Pressure: PN1.6 to 6.4MPa Nominal Diameter: DN15 to DN100 Applicable medium: water, oil, gas and some corrosive liquid Butt welding standard: ANSIB16·25 Dimension Unit: mm DN SIZE(INCH) ΦB E L H W DN15 1/2″ 15 14 61 54 105 DN20 3/4″ 20 15 71 61 110 DN25 1″ 25 18 81 67 130 DN32 1-1/4″ 32 20 96 80 140 DN40 1-1/2″ 38 21 105 87 165 DN50 2″ 49 21 120 97 175 DN65 2-1/2″ 65 28 162 122 215 DN80 3″ 80 30 170 141 250 DN100 4″ 100 32 225 163 300

2 Piece Flanged Ball Valve Design & manufacture: EN12516, DIN3357 Face to Face: DIN 3202, EN558-1, DN15 to DN100 (F4,F14), DN125 to DN250 (F5,F15) Flange End: EN1092-2, ISO7005-2 Nominal Pressure: PN16, PN25, PN40, PN63 Pressure testing: EN1266, ISO 5208, DIN 3230 Nominal Size: DN15 to DN250 Body: Cast Iron, Cast Steel, CF8, CF8M Ball: SS304, SS316 Seat: PTFE, RPTFE Gasket: PTFE, RPTFE Bolt: Stainless Steel Nut: Stainless Steel Stem: SS304, SS316 Handle: Stainless Steel Dimensions: Inches mm L D D1 D2 t C N-Φd ½” DN15 108 90 60.5 35 2 10 4-Φ16 ¾” DN20 117 100 70 43 2 11 4-Φ16 1” DN25 127 110 79.5 51 2 12 4-Φ16 1-1/4” DN32 140 115 89 63.5 2 13 4-Φ16 1-1/2” DN40 165 125 98.5 73 2 15 4-Φ16 2” DN50 178 150 120.5 92 2 16 4-Φ19 2-1/2” DN65 190 180 140 105 2 18 4-Φ19 3” DN80 203 190 152.5 127 2 19 4-Φ19 4” DN100 229 230 190.5 157 2 24 8-Φ19 5” DN125 356 255 216 186 2 24 8-Φ22 6” DN150 394 280 241.5 216 2 26 8-Φ22 8” DN200 457 345 298.5 267 2 29 8-Φ22 10” DN250 533 405 362 324 2 31 12-Φ25

1 Piece Screwed Ball Valve Full Port or Reduced Port Investment cast stainless steel unibody Blow-out proof stem, Double reduced port Size: DN6 to DN50 Nominal Pressure: PN1.0 to PN2.5 Body: CF8, CF8M, Carbon Steel, Cast Iron Ball: ASTM A351 Gr CF8M Seat: PTFE Insert: ASTM A351 Gr CF8M Stem: SS316 Thrust washer: PTFE Stem packing: PTFE Gland ring: SS304 Handle: SS304 Stem washer: SS304 Stem nut: SS304 Locking device: SS304 Dimension: Unit: mm DN L D E 6 40 5 70 10 45 7 78 15 55 9 99 20 60 12 96 25 70 15 112 32 78 20 128 40 83.5 25 142 50 96.5 32 155

1 Piece Flanged Ball Valve Design & manufacture: EN12516, DIN3357 Face to Face: DIN 3202, EN558-1, DN15 to DN100 (F4,F14), DN125 to DN250 (F5,F15) Flange End: EN1092-2, ISO7005-2 Nominal Pressure: PN16, PN25, PN40, PN63 Pressure testing: EN1266, ISO 5208, DIN 3230 Nominal Size: DN15 to DN250 Body: Cast Iron, Cast Steel, CF8, CF8M Ball: SS304, SS316 Seat: PTFE, RPTFE Gasket: PTFE, RPTFE Bolt: Stainless Steel Nut: Stainless Steel Stem: SS304, SS316 Handle: Stainless Steel Dimensions Unit: mm DN φd L D K D1 C f H N-φ W 15 12 90 95 65 46 14 2 60 4-14 110 20 15 105 105 75 56 14 2 65 4-14 120 25 20 110 115 85 65 15 2 75 4-14 150 32 25 125 135 100 75 16 3 83 4-18 160 40 32 136 145 110 85 18 3 90 4-18 160 50 38 155 160 125 100 18 3 100 4-18 180 65 50 170 180 145 118 20 3 110 4-18 200 80 65 200 195 160 132 20 3 130 8-18 250 100 80 230 215 180 150 22 3 150 8-18 270

Forged Floating Ball Valve Bonnet: A105, F304, F316, Seat: RPTFE Body: A105, F304, F316 O Ring: Viton Gland: Stainless Steel Stem: Stainless Steel Stem Nut: Stainless Steel Lever: Stainless Steel, Carbon Steel Positioning Plate: Cast Steel Positioning Pin: Stainless Steel Packing: Graphite Lower Gasket: PTFE Ball: F304, F316 Body Gasket: Graphite+Stainless Steel Stud Bolts: A193 B7 Nut: A194 2H Spring: Stainless Steel Nominal Diameter: Nominal Pressure: End Connection: Dimension Class150 Unit: mm DN L d D D1 D2 z-d T E 15 108 13 90 60.5 35 4-16 9 2 20 117 19 100 70 43 4-16 10 2 25 127 25 110 79.5 51 4-16 11 2 32 140 32 115 89 64 4-16 11 2 40 165 38 125 98.5 73 4-16 13 2 50 178 50 150 120.5 92 4-19 14.5 2 80 203 75 190 152.5 127 4-19 17.5 2 100 229 100 230 190.5 157 8-19 22.5 2 150 394 150 280 241.5 216 8-22 24 2 200 457 201 345 298.5 270 8-22 27 2
