Cast Iron and Cast Steel Ball Valve

3 Piece Screwed Ball Valve 1. Body: Carbon Steel, Cast Iron, CF8, CF8M 2. Cap: Carbon Steel, Cast Iron, CF8, CF8M 3. Ball: Carbon Steel, Cast Iron, CF8, CF8M 4. Stem: SS304, SS316 5. Gland Nut: SS304 6. Seat: PTFE, RTFE 7. Seal: PTFE 8. Packing: PTFE 9. Thrust Washer: PTFE 10. Spring Washer: SS304 11. Stem Nut: SS304 12. Bolt: SS304 13. Nut: SS304 14. Spring Washer: SS304 15. Handle: Stainless Steel 16. Locking Device: Stainless Steel 17. Handle Sleeve: PVC

3 Piece Flanged Ball Valve 1.Body: CF8, CF8M, Cast Iron, Carbon Steel 2. Cap: CF8, CF8M, Cast Iron, Carbon Steel 3. Ball: CF8, CF8M, Cast Iron, Carbon Steel 4. Stem: SS304, SS316 5. Gland Nut: SS304, SS316 6. Seat: PTFE, RTFE 7. Seal: PTFE 8. Packing: PTFE 9. Thrust Washer: PTFE 10. Spring Washer: SS304 11. Stem Nut: SS304 12. Bolt: SS304 13. Nut: SS304 14. Spring Washer: SS304 15. Handle: Stainless Steel 16. Locking Device: Stainless Steel 17. Handle Sleev

2 Piece Screwed Ball Valve Body: CF8, CF8M, Cast Iron, Carbon Steel Bonnet: CF8, CF8M, Cast Iron, Carbon Steel Ball: SS304 Stem: SS304 Gland Nut: SS304 Washer: SS304 Stem Nut: SS201 Seal Ring: PTFE Gasket: PTFE Thrust Washer: PTFE Packing: PTFE Handle: SS201 Handle Cover: Plastic Nominal Pressure: PN1.6 to 6.4MPa Nominal Diameter: DN15 to DN100 Applicable medium: water, oil, gas and some

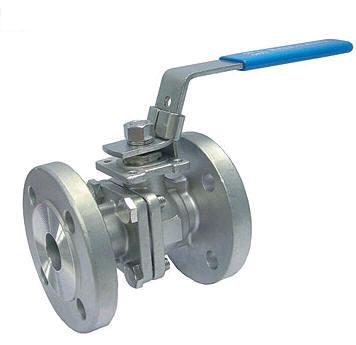

2 Piece Flanged Ball Valve Design & manufacture: EN12516, DIN3357 Face to Face: DIN 3202, EN558-1, DN15 to DN100 (F4,F14), DN125 to DN250 (F5,F15) Flange End: EN1092-2, ISO7005-2 Nominal Pressure: PN16, PN25, PN40, PN63 Pressure testing: EN1266, ISO 5208, DIN 3230 Nominal Size: DN15 to DN250 Body: Cast Iron, Cast Steel, CF8, CF8M Ball: SS304, SS316 Seat: PTFE, RPTFE Gasket: PTFE, RPTFE Bolt: Stainless Steel Nut: Stainless Steel Stem: SS304, SS316 Handle: Stainless Steel

1 Piece Screwed Ball Valve Full Port or Reduced Port Investment cast stainless steel unibody Blow-out proof stem, Double reduced port Size: DN6 to DN50 Nominal Pressure: PN1.0 to PN2.5 Body: CF8, CF8M, Carbon Steel, Cast Iron Ball: ASTM A351 Gr CF8M Seat: PTFE Insert: ASTM A351 Gr CF8M Stem: SS316 Thrust washer: PTFE Stem packing: PTFE Gland ring: SS304 Handle: SS304 Stem washer: SS304 Stem nut: SS304 Locking device: SS304 Dimension:

1 Piece Flanged Ball Valve Design & manufacture: EN12516, DIN3357 Face to Face: DIN 3202, EN558-1, DN15 to DN100 (F4,F14), DN125 to DN250 (F5,F15) Flange End: EN1092-2, ISO7005-2 Nominal Pressure: PN16, PN25, PN40, PN63 Pressure testing: EN1266, ISO 5208, DIN 3230 Nominal Size: DN15 to DN250 Body: Cast Iron, Cast Steel, CF8, CF8M Ball: SS304, SS316 Seat: PTFE, RPTFE Gasket: PTFE, RPTFE Bolt: Stainless Steel Nut: Stainless Steel Stem: SS304, SS316 Handle: Stainless Steel

Forged Floating Ball Valve Bonnet: A105, F304, F316, Seat: RPTFE Body: A105, F304, F316 O Ring: Viton Gland: Stainless Steel Stem: Stainless Steel Stem Nut: Stainless Steel Lever: Stainless Steel, Carbon Steel Positioning Plate: Cast Steel Positioning Pin: Stainless Steel Packing: Graphite Lower Gasket: PTFE Ball: F304, F316 Body Gasket: Graphite+Stainless Steel Stud Bolts: A193 B7 Nut: A194 2H Spring: Stainless Steel Nominal Diameter: Nominal
