F347 Globe Valve
Body: F347, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
Disc: F347, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
Trim: SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20
Gland Packing: Graphite, PTFE
Nominal Size: DN15 to DN500
Nominal Pressure: Class150 to Class600
End Connections: Flanged, Socketweld, Buttweld
Operations: Handwheel Operated, Electric Actuated, Pneumatic Actuated
Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS1414
Face to Face Dimensions: ANSI B16.10, API 6D
Flanged End Dimension: ANSI B16.5, MSS-SP-44 to API605
Inspection and Test: API 598, API 6D
Dimensions
Class150
|
NPS |
in |
2 |
2 1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
|
d |
mm |
51 |
64 |
76 |
102 |
127 |
152 |
203 |
254 |
305 |
|
L(RF) |
mm |
203 |
216 |
241 |
292 |
356 |
406 |
495 |
622 |
698 |
|
L(BW) |
mm |
203 |
216 |
241 |
292 |
356 |
406 |
495 |
622 |
698 |
|
L(RTJ) |
mm |
216 |
229 |
254 |
305 |
369 |
419 |
508 |
635 |
711 |
|
d1 |
mm |
92 |
105 |
127 |
157 |
186 |
216 |
270 |
324 |
381 |
|
d2 |
mm |
120.5 |
139.5 |
152.5 |
190.5 |
216 |
241.5 |
298.5 |
362 |
432 |
|
D |
mm |
152 |
178 |
190 |
229 |
254 |
279 |
343 |
406 |
483 |
|
b |
mm |
16 |
18 |
19 |
24 |
24 |
26 |
29 |
31 |
32 |
|
n-Фd |
mm |
4-19 |
4-19 |
4-19 |
8-19 |
8-22 |
8-22 |
8-22 |
12-25 |
12-25 |
|
H |
mm |
330 |
360 |
390 |
445 |
480 |
520 |
600 |
773 |
880 |
|
H1 |
mm |
– |
– |
– |
– |
– |
556 |
658 |
805 |
955 |
|
W |
mm |
200 |
200 |
250 |
300 |
350 |
350 |
500 |
500 |
550 |
|
W1 |
mm |
– |
– |
– |
– |
– |
310 |
310 |
460 |
460 |
F347 Swing Check Valve Body: F347, Alloy 20, Monel, Duplex, Super Duplex, Inconel, Hastelloy C276/B3, Titanium, Carbon Steel Disc: F347, Alloy20, ss304, ss316 Seal: PTFE, RPTFE, PPL Seat: 13Cr, Stellite Nominal Size: DN50 to DN400 Nominal pressure: PN1.6, PN2.5Mpa, PN4.2MPa, Class150 to Class300 Connection: Flanged, Butt-welded, Socketweld D
F347 Dual Plate Wafer Check Valve Body: F347, Alloy 20, Monel, Duplex, Super Duplex, Inconel, Hastelloy C276/B3, Titanium, Carbon Steel Disc: F347, Alloy20, ss304, ss316 Seal: PTFE, RPTFE, PPL Seat: 13Cr, Stellite Nominal Size: 2″ to 24″ Nominal pressure: PN1.6, PN2.5Mpa, PN4.2MPa, Class

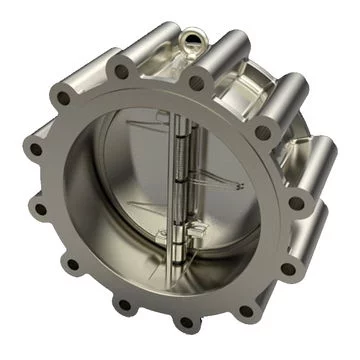

F347 Dual Plate Lug Type Check Valve Body: F347, Alloy 20, Monel, Duplex, Super Duplex, Inconel, Hastelloy C276/B3, Titanium, Carbon Steel Disc: F347, Alloy20, ss304, ss316 Seal: PTFE, RPTFE, PPL Seat: 13Cr, Stellite Nominal Size: 2″ to 24″ Nominal pressure: Class150 to Class600, PN1.6, PN2.5Mpa, PN4.2MPa End Connection: Lug Design and Manufacture: ANSI B16.34, API 6D, DIN 3840, BS EN 186
F347 Wafer Butterfly Valve Body: F347, Alloy Steel, Duplex Stainless Steel, Super Duplex Disc: F347, SS316, Duplex Stainless Steel, Hastelloy, Titanium, Aluminium Bronze Stem: SS316 Seat: PTFE, RTFE, SS316 Shaft: SS316 Packing Seal: PTFE, Graphite Nominal Size: DN50 to DN300 Nominal Pressure: Class150 to Class600,PN16 to PN40 Connection: Wafer Face to Face Dimensions: ANSI B16.10, API 609, MSS-SP-68, ISO 5752 Flanged End Dimensions: ASME B16.5, JIS B2210, DIN Inspection and Test: API 598
F347 Lug Type Butterfly Valve Body: F347, Alloy Steel, Duplex Stainless Steel, Super Duplex Disc: F347, SS316, Duplex Stainless Steel, Hastelloy, Titanium, Aluminium Bronze Stem: SS316 Seat: PTFE, RTFE, SS316 Shaft: SS316 Packing Seal: PTFE, Graphite Nominal Size: DN50 to DN300 Nominal Pressure: Class150 to Class600,PN16 to PN40 Connection: Wafer Face to Face Dimensions: ANSI B16.10, API 609, MSS-SP-68, ISO 5752 Flanged End Dimensions: ASME B16.5, JIS B2210, DIN Inspection and Test: API 598<
F347 Trunnion Mounted Ball Valve Body: F347, Titanium, CF8, CF8M, Cast Iron, Carbon Steel Ball: F347, Titanium, CF8, CF8M, Cast Iron, Carbon Steel Stem: SS304, SS316 Gland Nut: SS304, SS316 Seat: PTFE, RTFE, PPL Seal: PTFE Packing: PTFE, Graphite Nominal Size: 2″ to 24″ Nominal Pressure: Class 150 to Class 2500, PN16 to PN63 End Connection: Flanged Handle: Lever Handle, Locking Device Handle Operation: Manual, Pneumatic, Electric Actuated Design and Manufacture Standard: ASME B16.34,

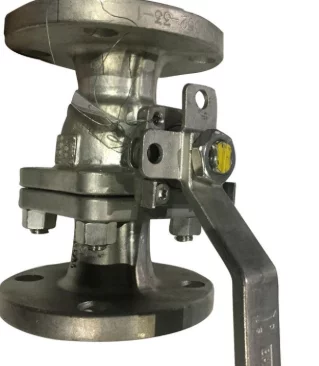

F347 Floating Ball Valve Body: F347, Titanium, CF8, CF8M, Cast Iron, Carbon Steel Ball: F347, Titanium, CF8, CF8M, Cast Iron, Carbon Steel Stem: SS304, SS316 Gland Nut: SS304, SS316 Seat: PTFE, RTFE, PPL Seal: PTFE Packing: PTFE, Graphite Nominal Size: 2″ to 8″ Nominal Pressure: Class 150 to Class 2500, PN16 to PN63 End Connection: Flanged Handle: Lever Handle, Locking Device Handle Operation: Manual, Pneumatic, Electric Actuated Design and Manufacture Standard: ASME B16.34, API 6D</p
