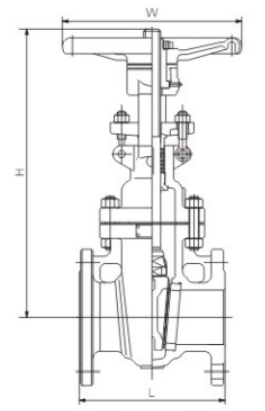

Monel Gate Valve

F44 Globe Valve Body: F44, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M Bonnet, Disc: F44, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M Trim: SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20, Duplex Stainless Steel, Super Duplex Stainless Steel Gland Packing: Graphite, PTFE End Connections: Flanged, Socketweld, Buttweld Operations: Handwheel Operated, Electric Actuated, Pneumatic Actuated Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS1414 Face to Face Dimensions: ANSI B16.10, API 6D Flanged End Dimension: 2″ to 24″ , ANSI B16.5, 26″ to 36″, MSS-SP-44 to API605 Inspection and Test: API 598, API 6D Dimensions Class150 NPS in 2 2 1/2 3 4 5 6 8 10 12 d mm 51 64 76 102 127 152 203 254 305 L(RF) mm 203 216 241 292 356 406 495 622 698 L(BW) mm 203 216 241 292 356 406 495 622 698 L(RTJ) mm 216 229 254 305 369 419 508 635 711 d1 mm 92 105 127 157 186 216 270 324 381 d2 mm 120.5 139.5 152.5 190.5 216 241.5 298.5 362 432 D mm 152 178 190 229 254 279 343 406 483 b mm 16 18 19 24 24 26 29 31 32 n-Фd mm 4-19 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25 H mm 330 360 390 445 480 520 600 773 880 H1 mm – – – – – 556 658 805 955 W mm 200 200 250 300 350 350 500 500 550 W1 mm – – – – – 310 310 460 460

Super Duplex Wafer Butterfly Valve Body: Super Duplex S2507, UNS S32750, UNS S32760, UNS S32950 Disc: Stainless Steel Stem: SS304, SS316 Seat: EPDM, NBR, VITON Bushing: PTFE O Ring: EPDM, NBR, VITON Nominal Size: DN40 to DN300 Nominal Pressure: PN10 to PN64, Class150 to Class2500 Dimensions Unit: mm PN10 DN L A B фD n-фd 40 33 131 65 110 4-ф18 50 43 161 67 125 4-ф18 65 46 175 75 145 4-ф18 80 46 181 96 160 8-ф18 100 52 200 114 180 8-ф18 125 56 213 129 210 8-ф18 150 56 225 144 240 8-ф22 200 60 260 167 295 8-ф22 250 68 292 207 350 12-ф22 300 78 337 237 400 12-ф22
