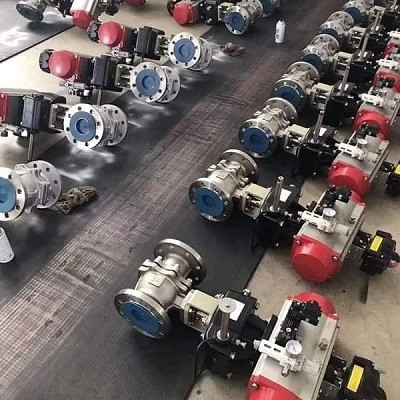

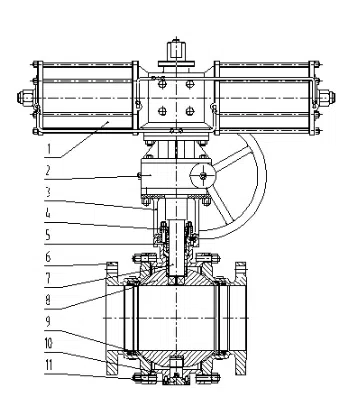

Pneumatic Casting Trunnion Ball Valve

Pneumatic Trunnion Forged Ball Valve Size: 2″ to 56″ Pressure: Class 150 to Class 1500 Material: WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L Design & Manufacture Standard: API 608, API 6D, BS 5351, ASME B16.34 Face to Face Standard: API B16.10, API 6D, DIN 3202 End Connection Standard: ASME B16.5, ASME B 16.47, ASME B 16.25, DIN2543-2550 Test Standard: ISO5208, API 6D, BS 6755 Structure Type: One, Two or Three-Piece Body, Reduced Bore, Full Bore Operation: Lever, Gear, Pneumatic, Electric Actuated Dimensions Size in 2 2 1/2 3 4 6 8 10 12 14 16 mm 50 65 80 100 150 200 250 300 350 400 L/L1(RF/BW) in 17.75 20.00 22.75 26.5 36.00 40.25 50.00 56.00 – – mm 451 508 578 673 914 1022 1270 1422 – – L2(RTJ) in 17.88 21.25 23.00 26.88 36.50 40.88 50.88 56.88 – – mm 454 540 584 683 927 1038 1292 1445 – – H in 7.50 9.00 11.00 14.12 15.75 18.88 20.50 26.38 – – mm 190 230 280 360 400 480 520 670 – – W in 24 32 32 32 32 40 40 40 – – mm 600 800 800 800 800 1000 1000 1000 – – WT(Kg) RF/RTJ 68 95 120 185 675 1100 1650 2300 – – BW 54 74 91 122 555 918 1355 2950 – –

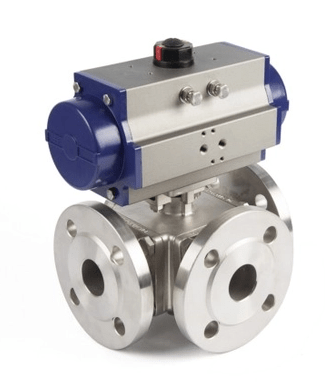

Pneumatic Three Way Flanged Ball Valve Body material: CF8M Stem: SS304 Connection type: Screwed, Buttweld, Threaded or Welded Nominal Diameter: DN15 to DN100, Class150 to Class300 Nominal Pressure: PN1.6 to PN6.3MPa Structure type: Floating ball core 3 way T type, 3 way L type Stem material: 304 Design and Manufacture: API 6D Face to Face Dimension: ASME B16.10 Flange End Dimension: ASME B16.5 Inspection and Test: API598, API6D Dimensions Unit: mm Size PN ΦD Φd Φd1 Φd2 L n Φh T f H SR DA DN in H1 L1 H1 L1 15 1/2 10-40 15 95 65 45 155 4 14 16 2 64.5 181.5 207 165 162 20 3/4 10-40 20 105 75 58 165 4 14 18 2 64.5 193 237.5 181.5 207 25 1 10-40 25 115 85 68 181 4 14 18 2 67.5 196 237.5 184.5 207 32 1 1/4 10-40 32 140 100 78 190 4 18 18 2 78.5 207 237.5 195.5 207 40 1 1/2 10-40 40 150 110 88 212 4 18 18 3 85 226.5 271.5 213.5 237.5 50 2 10-40 50 165 125 102 232 4 18 20 3 93 264.5 328 234.5 271.5 65 2 1/2 10-40 65 185 145 122 290 4 18 22 3 121 304.5 366 292.5 328 80 3 10-16 80 200 160 138 310 8 18 20 3 153 359 428 336.5 366 100 4 10-16 100 220 180 158 352 8 18 22 3 170.5 392.5 430 376.5 428

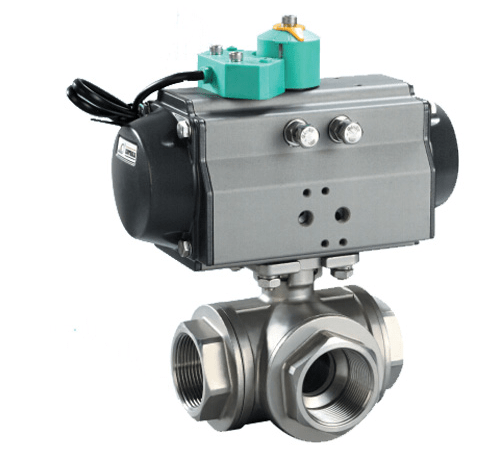

Pneumatic Three Way Ball Valve Body material: CF8M Stem: SS304 Connection type: Screwed, Buttweld, Threaded or Welded Nominal Diameter: DN15 to DN50 Nominal Pressure: PN1.6 to PN6.3MPa Structure type: Floating ball core 3 way T type, 3 way L type Stem material: 304 Dimensions Unit: mm DN d L H A p 15 11 79 42 115 158 20 15 88 49 115 158 25 20 108 60 137 177 32 25 124 63 137 177 40 32 135 74 147 196 50 40 164 83 165 226

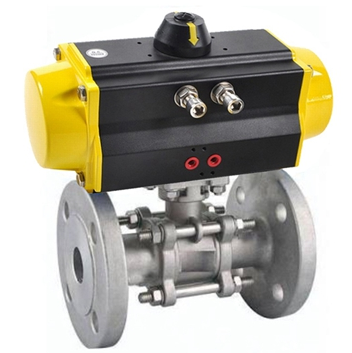

Pneumatic Three Piece Flanged Ball Valve Actuation Type: Spring Return, Double Acting Body: CF8M, Carbon Steel Ball: Stainless Steel, Carbon Steel Sealing Material: PTFE End Connection: Threaded, Buttweld(BW), Socketweld, Flanged Nominal Size: DN15 to DN200 Nominal Pressure: Class150, PN16 Operation: Lever Operated. Gear Operated, Electric Actuated, Pneumatic Actuated Dimensions Unit: mm DN L L0 L1 L2 H D D1 D2 C f n- Φd 15 150 72 178 121 204 95 65 46 14 2 4- Φ14 20 160 80 178 121 240 105 75 56 16 2 4- Φ14 25 180 90 178 121 257 115 85 65 16 2 4- Φ14 32 200 100 178 121 277 140 100 76 18 3 4- Φ18 40 220 110 210 131 292 150 110 84 18 3 4- Φ18 50 240 120 210 131 325 165 125 99 20 3 4- Φ18 62 260 130 210 131 357 185 145 118 20 3 4- Φ18 80 280 140 309 160 368 200 160 132 20 3 8- Φ18 100 320 160 309 160 410 220 180 156 22 3 8- Φ18 125 380 190 309 160 470 250 210 184 22 3 8- Φ18 150 440 220 309 177 556 285 240 211 24 3 8- Φ22 200 550 260 309 177 648 340 295 266 24 3 8- Φ22

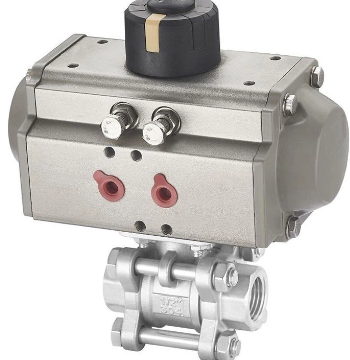

Pneumatic Three Piece Ball Valve Actuation Type: Spring Return, Double Acting Body material: CF8M, Carbon Steel Ball Material: Stainless Steel, Carbon Steel Sealing Material: PTFE End Connection: Threaded, Buttweld(BW), Socketweld, Flanged Nominal Size: 1/2″ t0 3″ Nominal Pressure: 2250, 1500WOG Operation: Lever Operated. Gear Operated, Electric Actuated, Pneumatic Actuated Dimensions Unit: mm DN L0 L d G H ½” 141 72 95 65 159 ¾” 141 82 105 75 167 1” 141 90 115 85 172 1 ¼” 159 112 140 100 210 1 ½” 211 120 150 110 218 2” 211 145 165 125 248 2 ½” 248 185 185 145 273 3” 269 210 200 160 313

Pneumatic Actuated 2 Piece Ball Valve Nominal Size : DN10 to DN50 Body: Stainless Steel, Carbon Steel Ball: Stainless Steel, Carbon Steel Sealing Material: PTFE End Connection: Threaded, Buttweld(BW), Socketweld, Flanged Actuation Type: Spring Return, Double Acting Dimensions Unit: mm DN L K SW H T D B 10 55 12 16 104 65 150 15 55 12 26 104 65 40 150 20 71 16 32 107 65 40 150 25 82 19 39 120 75 40 150 32 91 19 43 142 88 40 173 40 103 20 54 147 88 40 173 50 121 23 69 167 100 40 187

Pneumatic Actuated 2 Piece Flanged Ball Valve Body: Carbon Steel, CF8M Ball: SS304, SS316 Shaft: A182 F6, F304, F316 Seat: PTFE, RPTFE Bolt: SS304, SS316 Nut: SS304, SS316 Nominal Size: DN15 to DN200 Operation: Lever Operated, Gear Operated, Pneumatic Actuated, Electric Actuated Dimensions Unit: mm DN L T f D C B A H N – M 15 130 14 2 95 65 45 163 164 4-Φ14 20 140 15 2 105 75 54 163 170 4-Φ14 25 150 16 2 115 85 65 163 175 4-Φ14 32 165 16 2 135 100 78 163 184 8-Φ18 40 180 17 2 145 110 85 214 214 8-Φ18 50 200 18 2 160 125 100 252 225 8-Φ18 65 220 18 2 180 145 120 252 253 8-Φ18 80 250 18 2 195 160 135 316 296 8-Φ18 100 280 20 2 215 180 155 354 322 8-Φ18 125 320 22 3 245 210 185 418 408 8-Φ18 150 360 24 3 280 240 265 450 465 8-Φ22 200 400 26 3 335 295 265 530 552 12-Φ22
