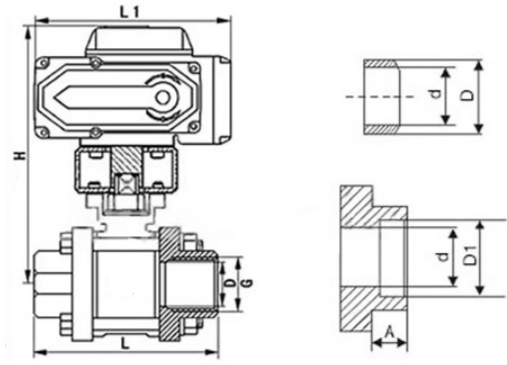

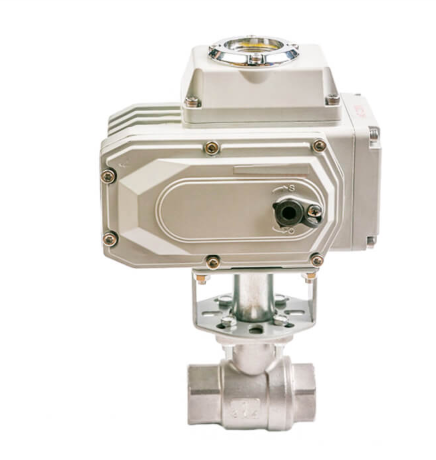

Electric Actuated 2 Piece Screwed Ball Valve

Electric Actuated Globe Valve Size: DN10 to DN300 Pressure: PN10 to PN150, Class150 to Class900 Body Material: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel Bonnet: Carbon Steel, Ductile Iron, SS304, SS316, CF3, CF3M Plug: A105, SS304, SS316, SS304L, SS316L Seat, Seat Ring: PTFE Packing: Graphite Flanged Ends to ASME B16.5 Socket Weld Ends to ASME B16.11 Butt Weld Ends to ASME B16.25 Screwed Ends to ANSI , ASME B1.20.1 End Connections: Flanged, Socketweld, Buttweld Operations: Handwheel, Gear Operated, Electric Actuated, Pneumatic Actuated Dimensions Unit: mm Class 150 DN L D D2 b f Z-d H D0 10 130 90 60 40 14 2 4-14 198 120 20 160 105 75 55 16 2 4-14 258 140 25 160 115 85 65 16 2 4-14 275 160 32 180 135 100 78 18 2 4-18 280 180 40 200 145 110 85 18 2 4-18 330 200 50 230 160 125 100 18 3 4-18 350 240 65 290 180 145 120 18 3 4-18 400 280 80 310 195 160 135 20 3 8-18 355 280 100 350 215 180 155 22 3 8-18 415 320 125 400 245 210 185 24 3 8-18 460 360 150 480 280 240 210 24 3 8-23 510 400 200 600 335 295 265 26 3 12-23 710 400 250 650 405 355 320 30 3 12-23 768 450 300 750 460 410 375 30 3 12-23 925 500

Electric Actuated Gate Valve Size: DN40 to DN700 Pressure: PN10 to PN150, Class150 to Class900 Body Material: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel Bonnet: Carbon Steel, Ductile Iron, SS304, SS316, CF3, CF3M Plug: A105, SS304, SS316, SS304L, SS316L Seat, Seat Ring: PTFE Packing: Graphite Flanged Ends to ASME B16.5 Socket Weld Ends to ASME B16.11 Butt Weld Ends to ASME B16.25 Screwed Ends to ANSI , ASME B1.20.1 End Connections: Flanged, Socketweld, Buttweld Operations: Handwheel, Gear Operated, Electric Actuated, Pneumatic Actuated Dimensions Unit: mm PN16 DN L D D1 D2 b f z-d H Torque(N.m) 40 200 145 110 85 16 3 4-18 595 – 50 250 160 125 100 16 3 4-18 653 ­- 65 265 180 145 120 18 3 4-18 665 – 80 280 195 160 135 20 3 8-18 725 – 100 300 215 180 155 20 3 8-18 787 100 150 350 280 240 210 24 3 8-23 955 160 200 400 335 295 265 26 3 12-23 1105 175 250 450 405 355 320 30 3 12-25 1343 275 300 500 460 410 375 30 3 12-25 1516 335 350 550 520 470 435 34 4 16-25 1678 505 400 600 580 525 485 36 4 16-30 1849 785 450 650 640 585 545 40 4 20-30 1937 835 500 700 705 650 608 44 4 20-34 2234 1045 600 800 840 770 718 48 5 20-41 3432 1415 700 900 910 840 788 50 5 24-41 2489 2100

Electric Actuated Lug Butterfly Valve Body: Ductile Iron, SS304, SS316, WCB Disc: SS316, SS304, Ductile Iron Seal: EPDM, PTFE, NBR, VITON End Connection: Lug Type Nominal Size: DN50 to DN800 Nominal Pressure: PN10, PN16 PN25, Class150 Actuation Type: Electric Actuated Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V Power Supply: 24V AC, 24V DC, 110V AC, 230V AC Dimensions Unit: mm DN L L1 L2 D D1 n-Φ d 50 42 178 121 52.9 120 4-Φ23 65 44.7 178 121 64.5 136.2 4-Φ26.5 80 45.2 210 131 78.8 160 8-Φ18 100 52.1 210 131 100.4 185 4-Φ24.5 125 54.4 210 131 123.3 215 4-Φ23 150 55.8 309 160 155.6 238 4-Φ25 200 60.6 309 160 202.5 295 4-Φ25 250 65.6 309 160 250.5 357 4-Φ29 300 76.5 309 177 301.6 407 4-Φ29 350 76.5 309 177 333.3 467 4-Φ30 400 86.5 309 177 389.6 515 4-Φ30 450 105.6 309 177 440.51 565 4-Φ30 500 131.8 309 177 491.5 620 4-Φ33 600 152 309 177 592.5 725 4-Φ36 700 163 309 177 695 840 4-Φ36 800 188 309 177 794.7 950 4-Φ39

Electric Actuated Wafer Butterfly Valve Body: Ductile Iron, SS304, SS316, WCB Disc: SS316, SS304, Ductile Iron Seal: EPDM, PTFE, NBR, VITON End Connection: Wafer Type Nominal Size: DN50 to DN600 Nominal Pressure: PN10, PN16, PN25, Class150 Actuation Type: Electric Actuated Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V Power Supply: 24V AC, 24V DC, 110V AC, 230V AC Dimensions Unit: mm DN H1 H2 H3 ∅A ∅B L DN50 75 129 32 125 105 43 DN65 82 136 32 145 127 46 DN80 99 153 32 160 145 46 DN100 110 167 32 190.5 165 52 DN125 125 193 32 216 200 56 DN150 145 209 32 241.3 225 56 DN200 170 251 40 298.4 280 60 DN250 210 280 45 361.9 350 68 DN300 240 315 45 431.8 400 78 DN350 260 348 45 476.2 445 78 DN400 295.5 392.5 52 540 510 102 DN450 401.5 322.5 52 585 565 114 DN500 451.5 362.5 64 650 620 127 DN600 541.5 428.5 70 770 725 154

Electric Actuated Forged Trunnion Ball Valve Body: Carbon Steel, CF8M, CF8M Bonnet: Carbon Steel, CF8M, CF8M Ball: CF8, CF8M Seat: PTFE Packing: PTFE Nominal Diameter: DN15 to DN250 Nominal Pressure: PN1.0 to PN6.4, Class150 to Class300 Actuation Type: Electric Actuated Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V Power Supply: 24V AC, 24V DC, 110V AC, 230V AC Dimensions Unit: mm DN D1 D2 d K D M B F L H1 H2 W1 W2 15 15 28 45 65 95 4-Φ14 14 2 102 290 55 196 145 20 15 28 55 75 105 4-Φ14 14 2 102 300 60 196 145 25 20 40 66 85 115 4-Φ14 14 2 102 310 65 196 145 32 25 46 78 100 135 4-Φ18 16 2 114 320 75 196 145 40 32 54 85 110 145 4-Φ18 16 2 114 330 80 196 145 50 40 65 100 125 160 4-Φ18 16 2 124 340 85 196 145 65 50 80 120 145 180 4-Φ18 18 2 145 350 100 196 145 80 65 100 135 160 195 8-Φ18 20 2 165 360 105 196 145 100 80 110 155 180 215 8-Φ18 20 2 194 420 115 196 145 125 100 135 185 210 245 8-Φ18 22 3 210 430 130 255 184 150 125 165 210 240 280 8-Φ23 24 3 229 450 150 255 184 200 160 205 265 295 335 12-Φ23 26 3 243 480 175 255 184 250 210 260 320 355 405 12-Φ26 30 3 297 520 220 255 184 300 250 322 375 410 460 12-Φ26 30 3 340 600 250 255 184 350 300 365 435 470 520 16-Φ26 34 3 422 630 280 255 184

Electric Actuated Casting Trunnion Ball Valve Body: Carbon Steel, CF8M, CF8M Bonnet: Carbon Steel, CF8M, CF8M Ball: CF8, CF8M Seat: PTFE Packing: PTFE Nominal Diameter: DN15 to DN250 Nominal Pressure: PN1.0 to PN6.4, Class150 to Class300 Actuation Type: Electric Actuated Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V Power Supply: 24V AC, 24V DC, 110V AC, 230V AC Dimensions DN(mm) 15 20 25 32 40 50 65 80 100 Rated Kv 20 38 72 110 170 270 380 510 940 DN(mm) 125 150 200 250 300 350 400 450 500 Rated Kv 1400 2200 3500 5000 8500 11000 13500 17000 20500

Electric Actuated Floating Ball Valve Body: Carbon Steel, CF8M, CF8M Bonnet: Carbon Steel, CF8M, CF8M Ball: CF8, CF8M Seat: PTFE Packing: PTFE Nominal Diameter: DN15 to DN250 Nominal Pressure: PN1.0 to PN6.4, Class150 to Class300 Actuation Type: Electric Actuated Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V Power Supply: 24V AC, 24V DC, 110V AC, 230V AC Dimensions PN16 Size DN L D D1 D2 b Z-Φd H L0 1/2″ 15 130 95 65 45 14 4-Φ14 78 140 3/4″ 20 130 105 75 55 14 4-Φ14 84 160 1″ 25 140 115 85 65 14 4-Φ14 95 180 1 1/4″ 32 165 135 100 78 16 4-Φ18 150 250 1 1/2″ 40 165 145 110 85 16 4-Φ18 150 300 2″ 50 203 160 125 100 16 4-Φ18 170 350 2 1/2″ 65 222 180 145 120 18 4-Φ18 195 350 3″ 80 241 195 160 135 20 8-Φ18 215 400 4″ 100 305 215 180 155 20 8-Φ18 250 500 5″ 125 356 245 210 185 22 8-Φ18 265 600 6″ 150 394 280 240 210 24 8-Φ18 270 800 8″ 200 457 335 295 265 24 12-Φ25 330 800 10″ 250 533 405 355 320 26 12-Φ25 450 1300

Electric Actuated Three Piece Ball Valve Body: Carbon Steel, CF8M Ball: Stainless Steel Seat: PTFE, RTFE, PPL Nominal Diameter: DN15 to DN80 Nominal Pressure: 1000PSI End Connections: Screwed, Threaded Or Welded, Buttweld Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V Power Supply: 24V AC, 24V DC, 110V AC, 230V AC Actuation Type: Electric Actuated Dimensions Unit: mm DN G L H 15 15 72 130 20 20 82 130 25 25 90 165 32 32 112 165 40 38 120 190 50 50 145 190 65 65 185 250 80 80 210 250
