Electric Actuated Three Way Ball Valve
Body : Carbon Steel, CF8M
Stem: SS304
Connection type: Flanged
Nominal Diameter: DN15 to DN200, Class150 to Class300
Nominal Pressure: PN1.6 to PN6.3MPa, Class150
Structure type: Floating ball core 3 way T type, 3 way L type
Stem material: 304
Design and Manufacture: API 6D
Face to Face Dimension: ASME B16.10
Flange End Dimension: ASME B16.5
Inspection and Test: API598, API6D
Dimensions Unit: mm

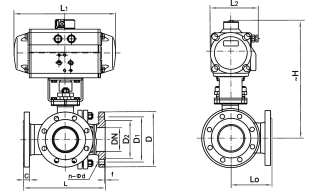

| DN | L | L0 | L1 | L2 | H | D | D1 | D2 | C | F |
n-φd
|
| 15 | 150 | 75 | 196/248 | 121/158 | 185/191 | 95 | 65 | 46 | 14 | 2 | 4-φ14 |
| 20 | 150 | 75 | 196/248 | 121/158 | 197/225 | 105 | 75 | 56 | 16 | 2 | 4-φ14 |
| 25 | 180 | 90 | 196/248 | 121/158 | 199/227 | 115 | 85 | 65 | 16 | 2 | 4-φ14 |
| 32 | 200 | 100 | 196/248 | 121/158 | 240/266 | 140 | 100 | 76 | 18 | 3 | 4-φ18 |
| 40 | 220 | 110 | 196/248 | 121/158 | 255/271 | 150 | 110 | 84 | 18 | 3 | 4-φ18 |
| 50 | 240 | 120 | 196/248 | 121/158 | 286/307 | 165 | 125 | 99 | 20 | 3 | 4-φ18 |
| 65 | 260 | 130 | 196/248 | 121/158 | 330/335 | 185 | 145 | 118 | 20 | 3 | 4-φ18 |
| 80 | 280 | 140 | 196/248 | 121/158 | 349/383 | 200 | 160 | 132 | 20 | 3 | 8-φ18 |
| 100 | 320 | 160 | 196/248 | 121/158 | 421/487 | 220 | 180 | 156 | 22 | 3 | 8-φ18 |
| 125 | 380 | 190 | 196/248 | 121/158 | 485/557 | 250 | 210 | 184 | 22 | 3 | 8-φ18 |
| 150 | 440 | 220 | 196/248 | 121/158 | 528/629 | 285 | 240 | 211 | 24 | 3 | 8-φ22 |
| 200 | 550 | 275 | 196/248 | 121/158 | 702/750 | 340 | 295 | 266 | 24 | 3 | 12-φ22 |
