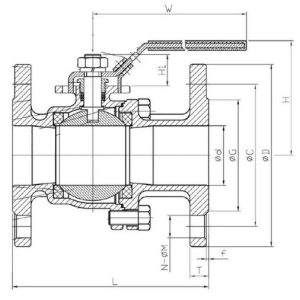

Incoloy 3 Piece Ball Valve

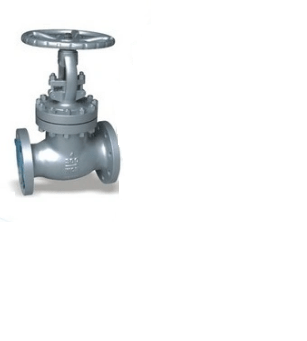

Incoloy Globe Valve Body: Incoloy 800, Incoloy 800H, Incoloy 825, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M Disc: Incoloy 800, Incoloy 800H, Incoloy 825, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M Trim: Incoloy 800, Incoloy 800H, Incoloy 825, SS304, SS316 Gland Packing: Graphite, PTFE End Connections: Flanged Operation: Handwheel Operated, Electric Actuated, Pneumatic Actuated Nominal Size: DN50 to DN600 Nominal Pressure: PN1.0 to 25MPa, Class150 to Class2500 Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS 1414, BS 5352, DIN 3352 Face to Face Dimension: ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202 Flanged End Dimension: ANSI B16.5, MSS-SP-44 to API605 Butt welded End Dimension: ANSI B16.5 Inspection and Test: API 598, API 6D, DIN 3230 Dimensions Unit: mm Class 150 DN L d H H1 W W1 RF RTJ BW 50 203 216 203 51 330 – 200 – 65 216 229 216 64 360 – 250 – 80 241 254 241 76 390 – 280 – 100 292 305 292 102 445 – 300 – 125 356 369 356 127 480 – 350 – 150 406 419 406 152 520 556 350 310 200 495 508 495 203 600 658 400 310 250 622 635 622 254 773 805 450 460 300 698 711 698 305 880 955 500 460 350 787 800 787 337 950 1100 600 460 400 914 927 914 387 996 1175 600 460 500 978 991 978 488 – 1450 – 600 600 1295 1308 1295 590 – 1690 – 600

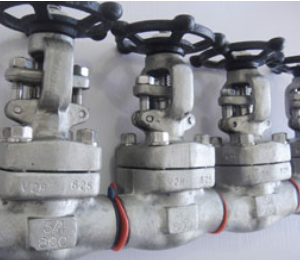

Incoloy Gate Valve Body: Incoloy 800, Incoloy 800H, Incoloy 825, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M Bonnet: Incoloy 800, Incoloy 800H, Incoloy 825, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M Disc: Incoloy 800, Incoloy 800H, Incoloy 825, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M Trim: Incoloy 800, Incoloy 800H, Incoloy 825, SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy Gland Packing: Graphite, PTFE End Connections: Flanged, Socketweld, Buttweld Operations: Handwheel Operated, Electric Actuated, Pneumatic Actuated Nominal Size: DN50 to DN500 Nominal Pressure: PN1.0 to 25MPa, Class150 to Class2500 Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS 1414, BS 5352, DIN 3352 Face to Face Dimension: ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202 Flanged End Dimension: ANSI B16.5, MSS-SP-44 to API605 Butt welded End Dimension: ANSI B16.5 Inspection and Test: API 598, API 6D, DIN 3230 Dimensions Unit: mm Class 150 DN L d H H1 W W1 RF RTJ BW 50 178 191 216 51 400 ? 200 ? 65 190 203 241 64 435 ? 200 ? 80 203 216 283 76 515 ? 250 ? 100 229 241 305 102 595 ? 280 ? 125 254 267 381 127 725 ? 280 ? 150 262 279 403 152 780 820 300 310 200 292 305 419 203 975 1020 350 310 250 330 343 457 254 1150 1200 400 310 300 356 368 502 305 1380 1430 450 310 350 381 394 572 337 1545 1580 500 310 400 406 419 610 387 1733 1780 500 460 450 432 445 660 438 1915 1990 500 460 500 457 470 711 489 2122 2220 600 460

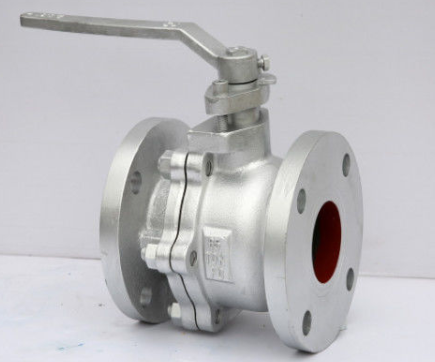

Incoloy 2 Piece Ball Valve Body: Incoloy 800, Incoloy 800H, Incoloy 825 Ball: SS304, SS316 End Cap: CF8, CF8M Stem: SS316, SS304 Seat: PTFE, RPTFE, PPL Packing: PTFE, RPTFE, PPL Nominal Size: 2″ to 8″ Nominal Pressure: PN1.0 to 10MPa, Class150 to Class600 Design and Manufacture Standard: API 6D Face to Face Dimensions: ANSI B16.10 Flange End Dimension: ANSI B16.5 Butt Welded Dimensions: ANSI B16.25 Inspection and Test: API598 Dimensions NPS in 2 2 1/2 3 4 5 6 8 d mm 51 64 76 102 127 152 203 L(RF) mm 216 241 283 305 381 403 502 d1 mm 92 105 127 157 186 216 270 d2 mm 127 149 168.5 200 235 270 330 D mm 165 190 210 254 279 318 381 b mm 23 26 29 32 35 37 42 n-?d mm 8-19 8-22 8-22 8-22 8-22 12-22 12-25 H mm 140 160 180 208 220 290 300 W mm 200 290 290 360 600 800 1000

Super Duplex Wafer Butterfly Valve Body: Super Duplex S2507, UNS S32750, UNS S32760, UNS S32950 Disc: Stainless Steel Stem: SS304, SS316 Seat: EPDM, NBR, VITON Bushing: PTFE O Ring: EPDM, NBR, VITON Nominal Size: DN40 to DN300 Nominal Pressure: PN10 to PN64, Class150 to Class2500 Dimensions Unit: mm PN10 DN L A B фD n-фd 40 33 131 65 110 4-ф18 50 43 161 67 125 4-ф18 65 46 175 75 145 4-ф18 80 46 181 96 160 8-ф18 100 52 200 114 180 8-ф18 125 56 213 129 210 8-ф18 150 56 225 144 240 8-ф22 200 60 260 167 295 8-ф22 250 68 292 207 350 12-ф22 300 78 337 237 400 12-ф22

Pneumatic Angle Control Valve Body: WCB, WC6, CF8, CF8M Bonnet: WCB, WC6, CF8, CF8M Seat: SS304, SS316, Stellite Plug Metal Sealing: SS304, SS316, Stellite Plug Soft Sealing: SS304, SS316, Stellite Cage: SS304, SS316 Guide Sleeve: SS304, SS316 Stem: SS304, SS316 Balanced Piston: Steel, Aluminium Balanced Piston Ring: Fluorine Ring, SS+Reinforced PTFE, Flexible Graphite Ring Nominal Size: DN20 to DN400 Pressure: PN 16 to PN 100, Class 150 to Class 600 End Connection: Flanged, RF, MF, RTJ Flow Characteristics Linear, Percentage, Quick Open Allowable range 50: 1 (CV<6.3 30: 1) Rated Cv value Percentage CV 1.6 to 630 ,linear CV 1.8 to 690 Allowable leakage Metal seal: IV grade(0.01% rated capacity) Soft seal: VI grade(foam grade) Performance Pneumatic Electric Allowable tolerance, % ±1.5 ±1.0 Return difference, % ≤1.5 ≤1.0 Dead zone, % ≤0.6 ≤1.0 Difference from beginning to end point, % ±2.5 ±2.5 Rated travel difference, % ≤2.5 ≤2.5 Note : specification on the basis of control valve with positioned and PTFE packing. Dimensions Nominal Diameter DN 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 L 115 115 130 130 150 170 190 215 250 275 325 375 375 425 475 H1 95 145 193 276 330 360 420 470 520 H2 205 238 344 421 483 512 562 620 672 H3 375 398 438 521 560 575 680 750 835 H4 700 _ H5 95 110 _ ΦD1 305 340 370 405 460 525 590 700 805 950 _ ΦD2 335 370 400 435 490 555 630 740 845 990 _ H 340 390 632 930 A 228 272 400 610 Weight(kg) 24 25 28 35 37 68 80 95 148 170 231 275 475 522 624

Electric 3 Way Control Valve Body: WCB, LCB, SS304, SS316, SS316L Bonnet: WCB, LCB, SS304, SS316, SS316L Lining Material: PO, PE, PP F46, F4, PFA Bellows Material: PTFE, PFA Stem Material: 17-4PH ASTM A276 304 Nominal Diameter: DN25 to DN300 Nominal Pressure: PN16, PN25, PN40, PN64, Class150, Class 300 Input Signal: 4-20mADC, 1-5VDC Power Supply: AC220V 50HZ Flange Standard: According to HG20592-97, ANSI, JIS, DIN and other standards Dimension DN 25 32 40 50 65 80 100 125 150 200 250 300 L PN16 185 200 220 250 275 300 350 410 450 550 670 770 PN40 190 210 230 255 285 310 355 425 460 560 740 803 PN64 200 200 240 265 295 320 370 440 475 570 752 819 H1 135 152 165 180 200 220 222 265 322 362 508 563 A 225 310 H Normal atmospheric temperature 555 561 660 675 863 868 872 905 920 950 1203 1265 H Medium temperature 707 709 812 827 1027 1032 1036 1120 1135 1165 1485 1557 Weight (PN64 Normal atmospheric temperature） 50 55 70 78 110 120 150 180 310 410 650 810
