3 Way plug Valve
Plug Valve

3 Way plug Valve

Status: IN_STOCK

3 Way Plug Valve

Body: WCB, CF8, CF8M, CF3, CF3M, LCB, WC6

Bonnet: WCB, CF8, CF8M, CF3, CF3M, LCB, WC6

Plug: A105+ENP, SS304, SS304L, SS316, SS316L

Seat: PTFE, PPL

Seat Ring: PTFE, PPL

Packing: Graphite, PTFE, PPL

Gasket: SS304+Graphite

Nominal Size: DN15 to DN300

Nominal Pressure: Class150 to Class2500, PN10 to PN420

Design according: API599, PI6D

Face to Face Dimension: ASME B16.10

Flanged End Dimension: ASME B16.5, ASME B16.47

Butt welded End Dimension: ASME B16.25

Inspection and Test: API 598

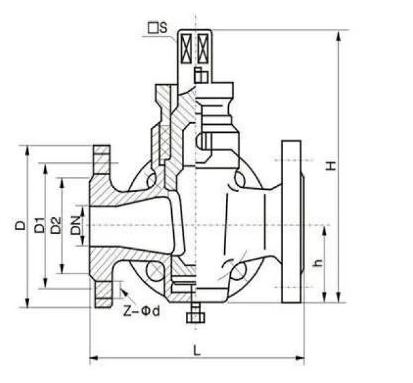

Dimensions

PN(Mpa) DN(mm) L D D1 D2 Z-Φ φd S h H
1.0 15 145 95 65 45 4-Φ φ14 14 26 99
20 145 105 75 55 4-Φ φ14 14 34 124
25 145 115 85 56 4-Φ φ14 17 38 133
32 165 135 100 78 4-Φ φ18 19 45 152
40 190 145 110 85 4-Φ φ18 22 55 212
50 200 160 125 100 4-Φ φ18 27 74 260
65 230 180 145 120 4-Φ φ18 32 82 295
80 260 195 160 135 4-Φ 18 36 95 327
100 300 215 180 155 8-Φ φ23 46 135 425
125 350 245 210 185 8-Φ φ23 50 154 482
150 400 280 240 210 8-Φ φ23 55 172 512
200 480 335 295 265 8-Φ φ23 75 195 605
250 530 390 350 320 8-Φ φ23 85 230 660
300 610 440 400 368 8-Φ φ23 100 263 760
