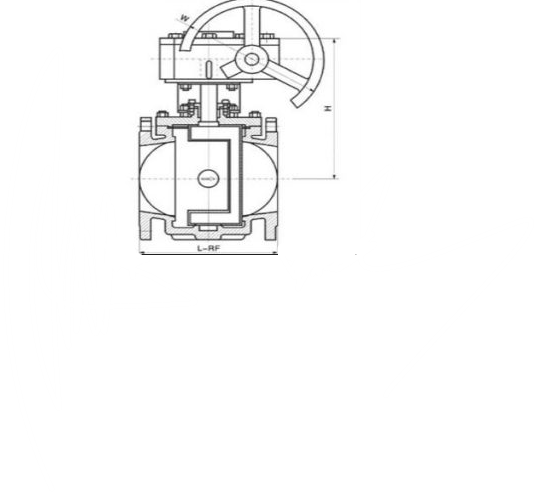

Eccentric Plug Valve

3 Way Plug Valve Body: WCB, CF8, CF8M, CF3, CF3M, LCB, WC6 Bonnet: WCB, CF8, CF8M, CF3, CF3M, LCB, WC6 Plug: A105+ENP, SS304, SS304L, SS316, SS316L Seat: PTFE, PPL Seat Ring: PTFE, PPL Packing: Graphite, PTFE, PPL Gasket: SS304+Graphite Nominal Size: DN15 to DN300 Nominal Pressure: Class150 to Class2500, PN10 to PN420 Design according: API599, PI6D Face to Face Dimension: ASME B16.10 Flanged End Dimension: ASME B16.5, ASME B16.47 Butt welded End Dimension: ASME B16.25 Inspection and Test: API 598 Dimensions PN(Mpa) DN(mm) L D D1 D2 Z-Φ φd S h H 1.0 15 145 95 65 45 4-Φ φ14 14 26 99 20 145 105 75 55 4-Φ φ14 14 34 124 25 145 115 85 56 4-Φ φ14 17 38 133 32 165 135 100 78 4-Φ φ18 19 45 152 40 190 145 110 85 4-Φ φ18 22 55 212 50 200 160 125 100 4-Φ φ18 27 74 260 65 230 180 145 120 4-Φ φ18 32 82 295 80 260 195 160 135 4-Φ 18 36 95 327 100 300 215 180 155 8-Φ φ23 46 135 425 125 350 245 210 185 8-Φ φ23 50 154 482 150 400 280 240 210 8-Φ φ23 55 172 512 200 480 335 295 265 8-Φ φ23 75 195 605 250 530 390 350 320 8-Φ φ23 85 230 660 300 610 440 400 368 8-Φ φ23 100 263 760

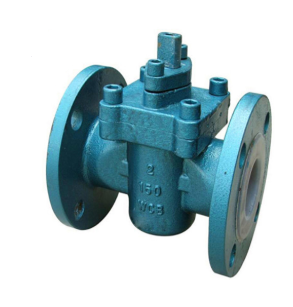

Non-Lubricated Sleeved Plug Valve Body: WCB, CF8, CF8M, CF3, CF3M, LCB, WC6 Bonnet: WCB, CF8, CF8M, CF3, CF3M, LCB, WC6 Plug: A105+ENP, SS304, SS304L, SS316, SS316L Seat: PTFE, PPL Seat Ring: PTFE, PPL Packing: Graphite, PTFE, PPL Gasket: SS304+Graphite Nominal Size: DN15 to DN350 Nominal Pressure: Class150 to Class900, PN16 to PN63 Flanged Ends to ASME B16.5 Socket Weld Ends to ASME B16.11 Butt Weld Ends to ASME B16.25 Screwed Ends to ANSI, ASME B1.20.1 Inspection and Test: API 598, API 6D Dimensions Class 150 Lbs Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 in 1/2″ 3/4″ 1″ 11/4″ 11/2″ 2″ 21/2″ 3″ 4″ 5″ 6″ 8″ 10″ 12″ 14″ L-RF 108 117 127 140 165 178 190 203 229 245 267 292 330 356 381 L-BW 152 178 203 216 229 267 305 330 356 381 394 457 533 610 686 H 110 115 115 135 140 150 165 180 380 460 520 580 260 680 760 W 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450

Lubricated Plug Valve Body: WCB, A105, LCB, LF2, WC6, F22, CF8, CF8M, F304, F316 Bonnet: WCB, A105, LCB, LF2, WC6, F22, CF8, CF8M, F304, F316 Plug: A105+ENP, Stainless Steel Seat: PTFE Seat Ring: PTFE Packing: Graphite, PTFE Gasket: Stainless Steel+Graphite Bolts/Nut: B7/2H Dimensions Class 150 mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 in 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4 5 6 8 10 12 14 L-RF 108 117 127 140 190 178 190 203 229 254 267 292 330 356 381 L-BW 152 178 203 216 229 267 305 330 356 381 394 457 533 610 686 H 180 180 185 200 210 215 250 270 300 340 365 400 450 510 590 W 400 400 500 500 600 600 820 820 300 300 320 320 350 380 380

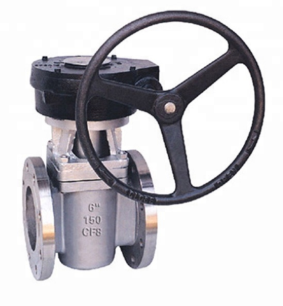

Jacketed Plug Valve Body: WCB, CF8, CF8M, CF3, CF3M, LCB, WC6 Bonnet: WCB, CF8, CF8M, CF3, CF3M, LCB, WC6 Plug: A105+ENP, SS304, SS304L, SS316, SS316L Seat: PTFE, PPL Seat Ring: PTFE, PPL Packing: Graphite, PTFE, PPL Gasket: SS304+Graphite Nominal Size: 1/2" to 14" Nominal Pressure: Class150 to Class900, PN16 to PN63 Flanged Ends to ASME B16.5 Socket Weld Ends to ASME B16.11 Butt Weld Ends to ASME B16.25 Screwed Ends to ANSI, ASME B1.20.1 Dimension Class 150 Size Inch 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4 5 6 8 10 12 14 L-RF mm 108 117 127 140 165 178 190 203 229 254 267 292 330 356 381 H mm 180 180 185 200 210 215 250 270 300 340 365 400 510 510 590 W mm 400 400 500 500 600 600 820 820 300 300 320 320 380 380 380

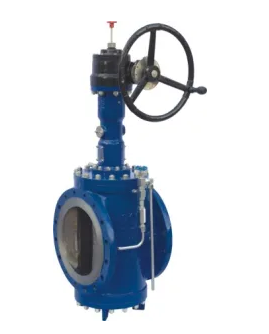

Twin Seal Plug Valve Body: WCB, A105, LCB, LF2, WC6, F22, CF8, CF8M, F304, F316 Bonnet: WCB, A105, LCB, LF2, WC6, F22, CF8, CF8M, F304, F316 Plug: A105+ENP, Stainless Steel Seat: PTFE Seat Ring: PTFE Packing: Graphite, PTFE Gasket: Stainless Steel+Graphite Bolts/Nut: B7/2H Dimensions Size(inch) L D1 D2 D3 B f n-Φd 6 394 280 241.3 215.9 239 2 8-Φ22 8 457 345 298.5 269.9 27 2 8-Φ22 10 533 405 362 323.8 28.6 2 12-Φ25 12 670 485 431.8 381 30.2 2 12-Φ25 16 762 595 539.8 469.9 35 2 16-Φ29 20 914 700 635 584.7 413 2 20-Φ32

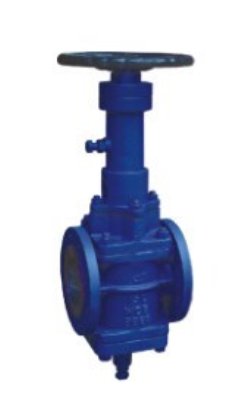

Orbit Plug Valve Body: WCB, CF8, CF8M, CF3, CF3M, LCB, WC6 Bonnet: WCB, CF8, CF8M, CF3, CF3M, LCB, WC6 Plug: A105+ENP, SS304, SS304L, SS316, SS316L Seat: PTFE, PPL Seat Ring: PTFE, PPL Packing: Graphite, PTFE, PPL Gasket: SS304+Graphite Nominal Size: DN15 to DN350 Nominal Pressure: Class150 to Class2500, PN16 to PN420 Design and Manufacture Standard: API 599, API 6D, ASME B16.34, BS 5353 Face to Face Dimension: ANSI B 16.10, API 6D, DIN3202, EN558-1, EN12982, ISO 5752 Flanged End Dimension: ANSI B 16.5, ASME B16.47; EN1092, DIN2543~DIN2547, AS2129 Screwed End Dimension: ANSI B1.20.1, BS21, JIS BO20 Inspection and Test: API598, API6D, DIN3230, EN12266, ISO 5208 Dimensions Unit: mm Class150 DN L-RF L-BW H W 15 108 152 230 120 20 117 178 260 140 25 127 203 300 140 32 140 216 340 180 40 165 229 380 200 50 178 267 435 220 65 190 305 460 260 80 203 330 490 280 100 229 356 525 300 125 254 381 570 340 150 267 394 625 400 200 292 457 700 450 250 330 533 780 450 300 305 610 870 500 350 381 686 980 500

Connection Lift Plug Valve Body: WCB, CF8, CF8M, CF3, CF3M, LCB, WC6 Bonnet: WCB, CF8, CF8M, CF3, CF3M, LCB, WC6 Plug: A105+ENP, SS304, SS304L, SS316, SS316L Seat: PTFE, PPL Seat Ring: PTFE, PPL Packing: Graphite, PTFE, PPL Gasket: SS304+Graphite Nominal Size: DN15 to DN350 Nominal Pressure: Class150 to Class900, PN16 to PN63 Flanged Ends to ASME B16.5 Socket Weld Ends to ASME B16.11 Butt Weld Ends to ASME B16.25 Screwed Ends to ANSI, ASME B1.20.1 Dimensions Unit: mm DN L-RF L-BW H W 15 108 152 190 120 20 117 178 195 140 25 127 203 225 140 32 140 216 260 180 40 165 229 280 200 50 178 267 310 220 65 190 305 340 260 80 203 330 395 280 100 220 356 435 300 125 254 381 470 340 150 267 394 535 400 200 292 457 590 450 250 330 533 630 450 300 356 610 680 500 350 381 686 720 500

F44 Globe Valve Body: F44, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M Bonnet, Disc: F44, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M Trim: SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20, Duplex Stainless Steel, Super Duplex Stainless Steel Gland Packing: Graphite, PTFE End Connections: Flanged, Socketweld, Buttweld Operations: Handwheel Operated, Electric Actuated, Pneumatic Actuated Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS1414 Face to Face Dimensions: ANSI B16.10, API 6D Flanged End Dimension: 2″ to 24″ , ANSI B16.5, 26″ to 36″, MSS-SP-44 to API605 Inspection and Test: API 598, API 6D Dimensions Class150 NPS in 2 2 1/2 3 4 5 6 8 10 12 d mm 51 64 76 102 127 152 203 254 305 L(RF) mm 203 216 241 292 356 406 495 622 698 L(BW) mm 203 216 241 292 356 406 495 622 698 L(RTJ) mm 216 229 254 305 369 419 508 635 711 d1 mm 92 105 127 157 186 216 270 324 381 d2 mm 120.5 139.5 152.5 190.5 216 241.5 298.5 362 432 D mm 152 178 190 229 254 279 343 406 483 b mm 16 18 19 24 24 26 29 31 32 n-Фd mm 4-19 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25 H mm 330 360 390 445 480 520 600 773 880 H1 mm – – – – – 556 658 805 955 W mm 200 200 250 300 350 350 500 500 550 W1 mm – – – – – 310 310 460 460

Super Duplex Wafer Butterfly Valve Body: Super Duplex S2507, UNS S32750, UNS S32760, UNS S32950 Disc: Stainless Steel Stem: SS304, SS316 Seat: EPDM, NBR, VITON Bushing: PTFE O Ring: EPDM, NBR, VITON Nominal Size: DN40 to DN300 Nominal Pressure: PN10 to PN64, Class150 to Class2500 Dimensions Unit: mm PN10 DN L A B фD n-фd 40 33 131 65 110 4-ф18 50 43 161 67 125 4-ф18 65 46 175 75 145 4-ф18 80 46 181 96 160 8-ф18 100 52 200 114 180 8-ф18 125 56 213 129 210 8-ф18 150 56 225 144 240 8-ф22 200 60 260 167 295 8-ф22 250 68 292 207 350 12-ф22 300 78 337 237 400 12-ф22

Pneumatic Angle Control Valve Body: WCB, WC6, CF8, CF8M Bonnet: WCB, WC6, CF8, CF8M Seat: SS304, SS316, Stellite Plug Metal Sealing: SS304, SS316, Stellite Plug Soft Sealing: SS304, SS316, Stellite Cage: SS304, SS316 Guide Sleeve: SS304, SS316 Stem: SS304, SS316 Balanced Piston: Steel, Aluminium Balanced Piston Ring: Fluorine Ring, SS+Reinforced PTFE, Flexible Graphite Ring Nominal Size: DN20 to DN400 Pressure: PN 16 to PN 100, Class 150 to Class 600 End Connection: Flanged, RF, MF, RTJ Flow Characteristics Linear, Percentage, Quick Open Allowable range 50: 1 (CV<6.3 30: 1) Rated Cv value Percentage CV 1.6 to 630 ,linear CV 1.8 to 690 Allowable leakage Metal seal: IV grade(0.01% rated capacity) Soft seal: VI grade(foam grade) Performance Pneumatic Electric Allowable tolerance, % ±1.5 ±1.0 Return difference, % ≤1.5 ≤1.0 Dead zone, % ≤0.6 ≤1.0 Difference from beginning to end point, % ±2.5 ±2.5 Rated travel difference, % ≤2.5 ≤2.5 Note : specification on the basis of control valve with positioned and PTFE packing. Dimensions Nominal Diameter DN 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 L 115 115 130 130 150 170 190 215 250 275 325 375 375 425 475 H1 95 145 193 276 330 360 420 470 520 H2 205 238 344 421 483 512 562 620 672 H3 375 398 438 521 560 575 680 750 835 H4 700 _ H5 95 110 _ ΦD1 305 340 370 405 460 525 590 700 805 950 _ ΦD2 335 370 400 435 490 555 630 740 845 990 _ H 340 390 632 930 A 228 272 400 610 Weight(kg) 24 25 28 35 37 68 80 95 148 170 231 275 475 522 624

Electric 3 Way Control Valve Body: WCB, LCB, SS304, SS316, SS316L Bonnet: WCB, LCB, SS304, SS316, SS316L Lining Material: PO, PE, PP F46, F4, PFA Bellows Material: PTFE, PFA Stem Material: 17-4PH ASTM A276 304 Nominal Diameter: DN25 to DN300 Nominal Pressure: PN16, PN25, PN40, PN64, Class150, Class 300 Input Signal: 4-20mADC, 1-5VDC Power Supply: AC220V 50HZ Flange Standard: According to HG20592-97, ANSI, JIS, DIN and other standards Dimension DN 25 32 40 50 65 80 100 125 150 200 250 300 L PN16 185 200 220 250 275 300 350 410 450 550 670 770 PN40 190 210 230 255 285 310 355 425 460 560 740 803 PN64 200 200 240 265 295 320 370 440 475 570 752 819 H1 135 152 165 180 200 220 222 265 322 362 508 563 A 225 310 H Normal atmospheric temperature 555 561 660 675 863 868 872 905 920 950 1203 1265 H Medium temperature 707 709 812 827 1027 1032 1036 1120 1135 1165 1485 1557 Weight (PN64 Normal atmospheric temperature） 50 55 70 78 110 120 150 180 310 410 650 810
