Alloy Trunnion Ball Valve
Body: Alloy Steel, Duplex Stainless Steel, Titanium
Disc: Alloy Steel, Stainless Steel, Duplex Stainless Steel
Ball: Alloy Steel, Duplex Stainless Steel, Stainless Steel
Seat: PTFE, RTFE, Nylon, Metal to Metal
Operation: Lever, Gear Operated, Pneumatic Actuated, Electric Actuated
Nominal Size: DN50 to DN300
Nominal Pressure: Class150 to Class1500, PN16 to PN250

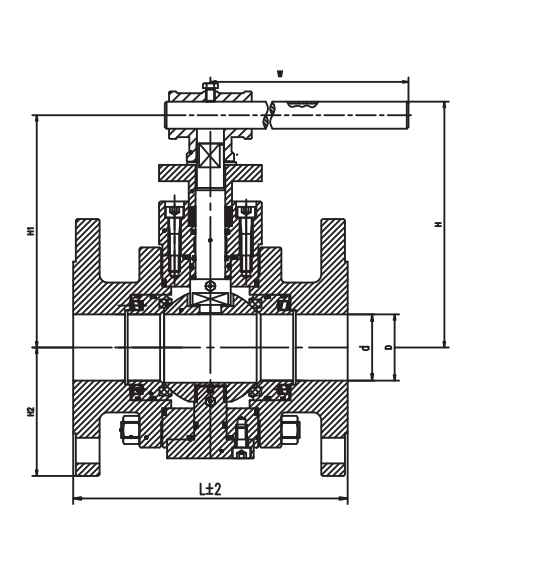

Dimensions
Class150 Unit: mm
| DN | d | L | H1 | H2 | W |
| 50 | 51 | 178 | 155 | 85 | 230 |
| 80 | 76 | 203 | 191 | 110 | 400 |
| 100 | 102 | 229 | 211 | 130 | 400 |
| 150 | 152 | 394 | 231 | 160 | 650 |
| 200 | 203 | 457 | 282 | 235 | 1050 |
| 250 | 254 | 533 | 336 | 290 | 1050 |
| 300 | 305 | 610 | 373 | 315 | 1050 |
Alloy Floating Ball Valve Body: Alloy Steel, Stainless Steel, Super Duplex Stainless Steel Disc: Alloy Steel, Stainless Steel, Super Duplex Stainless Steel Ball: Stainless Steel Bolt: A193 B8 Seat: PTFE Packing: PTFE Stem: Stainless Steel Gland: Stainless Steel Nominal Diameter: DN50 to DN200 Nominal Pressure: PN16 to PN63, Class150 to Class300 Dimensions Unit: mm Class150 DN <t
Alloy Lug Butterfly Valve Body: Alloy Steel, Monel, Inconel, Incoloy, Duplex Stainless Steel Disc: Alloy Steel, Monel, Inconel, Incoloy, Duplex Stainless Steel Stem: Stainless Steel Gland: Alloy Steel, Stainless Steel Seat: Graphite, PTFE Pin: Stainless Steel Nominal Diameter: DN40 to DN300 Nominal Pressure: PN16 to PN40 Dimensions PN16 Unit: mm DN <td wid
Alloy Wafer Butterfly Valve Body: Alloy Steel, Stainless Steel, Cast Stainless Steel, Duplex Stainless Steel Disc: Alloy Steel, Stainless Steel, Cast Stainless Steel, Duplex Stainless Steel Stem: Stainless Steel Packing: PTFE, Graphite Nominal Diameter: DN40 to DN600 Nominal Pressure: PN10 to PN40, Class150, Class300, Class900, Class1500, Class2500 Dimensions Class150 DN B A C L фK F <td widt
Alloy Dual Plate Check Valve Body: Alloy Steel, Duplex Stainless Steel, Super Duplex Stainless Steel Disc: Alloy Steel, Duplex Stainless Steel, Super Duplex Stainless Steel Seat: PTFE, VITON, EPDM Nominal Diameter: DN50 to DN600 Nominal Pressure: Class150 to Class1500, PN16 to PN64 Dimensions DN D D1 D2 L R T 50 102</td
Alloy Swing Check Valve Body: Alloy Steel, Duplex Steel, Titanium, Monel, Inconel, Incoloy Disc: Alloy Steel, Duplex Steel, Titanium, Monel, Inconel, Incoloy Trim: Stainless Steel Gland Packing: Graphite, PTFE Nominal Diameter: DN50 to DN600 Nominal Pressure: PN10 to PN64, Class150 to Class1500 Dimensions PN16 Unit: mm DN d <td widt

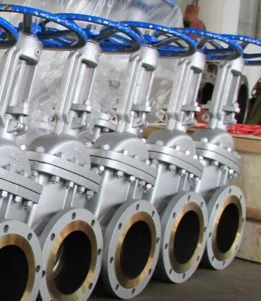

Alloy Gate Valve Body: Alloy 20, WC6, WC9 Gate: Alloy 20, 13Cr Disc: Alloy 20, 13Cr Stem: Alloy 20, 13Cr Seat Ring: A105/Nylon, Stellite Connections: Flanged, Threaded, Socket welded, ButtWeld Operations: Handwheel, Electric Actuated, Pneumatic Actuated Nominal Size: DN15 to DN400 Nominal Pressure: PN 1.0 to 2.5Mpa, Class 150 to Class2500 Temperature: -198°c to 450°c Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS1414 Face to Face Dimension: ANSI B16.10, API 6D Flang

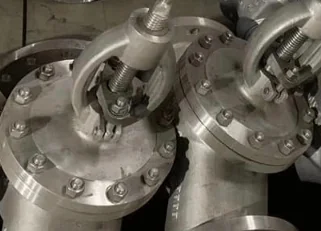

Alloy 20 Globe Valve Body: Alloy 20 Disc: Alloy 20 Stem: Alloy 20 Bolt: Stainless Steel Gland: Stainless Steel Gland Flange: A105 Nut: A194 8 Handwheel: Iron Nominal Size: DN15 to DN150 Nominal Pressure: Class150 to Class2500 Dimension Unit: mm DN L H W 15 <td width="127"
