Alloy Wafer Butterfly Valve
Body: Alloy Steel, Stainless Steel, Cast Stainless Steel, Duplex Stainless Steel
Disc: Alloy Steel, Stainless Steel, Cast Stainless Steel, Duplex Stainless Steel
Stem: Stainless Steel
Packing: PTFE, Graphite
Nominal Diameter: DN40 to DN600
Nominal Pressure: PN10 to PN40, Class150, Class300, Class900, Class1500, Class2500

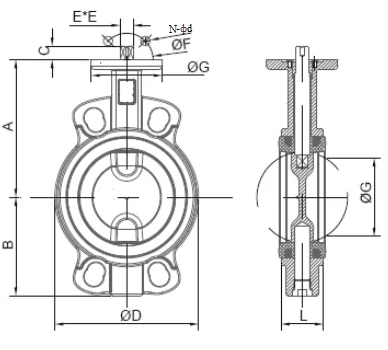

Dimensions
Class150
| DN | B | A | C | L | фK | F | N-фd |
| 40 | 67 | 141 | 32 | 33 | 110 | 50 | 4-ø18 |
| 50 | 67 | 141 | 32 | 43 | 125 | 50 | 4-ø18 |
| 65 | 75 | 151 | 32 | 46 | 145 | 50 | 4-ø18 |
| 80 | 95 | 160 | 32 | 46 | 160 | 70 | 8-ø18 |
| 100 | 111 | 180 | 32 | 52 | 180 | 70 | 8-ø18 |
| 125 | 129 | 193 | 32 | 56 | 210 | 70 | 8-ø18 |
| 150 | 142 | 207 | 32 | 56 | 240 | 102 | 8-ø22 |
| 200 | 170 | 240 | 45 | 60 | 295 | 102 | 8-ø22 |
| 250 | 206 | 270 | 45 | 68 | 350 | 102 | 12-ø22 |
| 300 | 238 | 316 | 45 | 78 | 400 | 125 | 12-ø22 |
| 350 | 267 | 368 | 45 | 78 | 460 | 125 | 16-ø22 |
| 400 | 298 | 400 | 51 | 86 | 515 | 140 | 12-ø26 |
| 450 | 318 | 422 | 51 | 105 | 565 | 140 | 20-ø26 |
| 500 | 349 | 479 | 57 | 130 | 620 | 165 | 20-ø26 |
| 600 | 410 | 562 | 70 | 152 | 725 | 254 | 20-ø30 |
Alloy Trunnion Ball Valve Body: Alloy Steel, Duplex Stainless Steel, Titanium Disc: Alloy Steel, Stainless Steel, Duplex Stainless Steel Ball: Alloy Steel, Duplex Stainless Steel, Stainless Steel Seat: PTFE, RTFE, Nylon, Metal to Metal Operation: Lever, Gear Operated, Pneumatic Actuated, Electric Actuated Nominal Size: DN50 to DN300 Nominal Pressure: Class150 to Class1500, PN16 to PN250 Dimensions Class150 Unit: mm <ta
Alloy Floating Ball Valve Body: Alloy Steel, Stainless Steel, Super Duplex Stainless Steel Disc: Alloy Steel, Stainless Steel, Super Duplex Stainless Steel Ball: Stainless Steel Bolt: A193 B8 Seat: PTFE Packing: PTFE Stem: Stainless Steel Gland: Stainless Steel Nominal Diameter: DN50 to DN200 Nominal Pressure: PN16 to PN63, Class150 to Class300 Dimensions Unit: mm Class150 DN <t
Alloy Lug Butterfly Valve Body: Alloy Steel, Monel, Inconel, Incoloy, Duplex Stainless Steel Disc: Alloy Steel, Monel, Inconel, Incoloy, Duplex Stainless Steel Stem: Stainless Steel Gland: Alloy Steel, Stainless Steel Seat: Graphite, PTFE Pin: Stainless Steel Nominal Diameter: DN40 to DN300 Nominal Pressure: PN16 to PN40 Dimensions PN16 Unit: mm DN <td wid
Alloy Dual Plate Check Valve Body: Alloy Steel, Duplex Stainless Steel, Super Duplex Stainless Steel Disc: Alloy Steel, Duplex Stainless Steel, Super Duplex Stainless Steel Seat: PTFE, VITON, EPDM Nominal Diameter: DN50 to DN600 Nominal Pressure: Class150 to Class1500, PN16 to PN64 Dimensions DN D D1 D2 L R T 50 102</td
Alloy Swing Check Valve Body: Alloy Steel, Duplex Steel, Titanium, Monel, Inconel, Incoloy Disc: Alloy Steel, Duplex Steel, Titanium, Monel, Inconel, Incoloy Trim: Stainless Steel Gland Packing: Graphite, PTFE Nominal Diameter: DN50 to DN600 Nominal Pressure: PN10 to PN64, Class150 to Class1500 Dimensions PN16 Unit: mm DN d <td widt
Alloy Gate Valve Body: Alloy 20, WC6, WC9 Gate: Alloy 20, 13Cr Disc: Alloy 20, 13Cr Stem: Alloy 20, 13Cr Seat Ring: A105/Nylon, Stellite Connections: Flanged, Threaded, Socket welded, ButtWeld Operations: Handwheel, Electric Actuated, Pneumatic Actuated Nominal Size: DN15 to DN400 Nominal Pressure: PN 1.0 to 2.5Mpa, Class 150 to Class2500 Temperature: -198°c to 450°c Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS1414 Face to Face Dimension: ANSI B16.10, API 6D Flang
Alloy 20 Globe Valve Body: Alloy 20 Disc: Alloy 20 Stem: Alloy 20 Bolt: Stainless Steel Gland: Stainless Steel Gland Flange: A105 Nut: A194 8 Handwheel: Iron Nominal Size: DN15 to DN150 Nominal Pressure: Class150 to Class2500 Dimension Unit: mm DN L H W 15 <td width="127"
Pneumatic Angle Control Valve Body: WCB, WC6, CF8, CF8M Bonnet: WCB, WC6, CF8, CF8M Seat: SS304, SS316, Stellite Plug Metal Sealing: SS304, SS316, Stellite Plug Soft Sealing: SS304, SS316, Stellite Cage: SS304, SS316 Guide Sleeve: SS304, SS316 Stem: SS304, SS316 Balanced Piston: Steel, Aluminium Balanced Piston Ring: Fluorine Ring, SS+Reinforced PTFE, Flexible Graphite Ring Nominal Size: DN20 to DN400 Pressure: PN 16 to PN 100, Class 150 to Class 600 End Connection: Flanged, RF, MF, R
Electric 3 Way Control Valve Body: WCB, LCB, SS304, SS316, SS316L Bonnet: WCB, LCB, SS304, SS316, SS316L Lining Material: PO, PE, PP F46, F4, PFA Bellows Material: PTFE, PFA Stem Material: 17-4PH ASTM A276 304 Nominal Diameter: DN25 to DN300 Nominal Pressure: PN16, PN25, PN40, PN64, Class150, Class 300 Input Signal: 4-20mADC, 1-5VDC Power Supply: AC220V 50HZ Flange Standard: According to HG20592-97, ANSI, JIS, DIN and other standards Dimension <table border="1" cellspacing="0"
