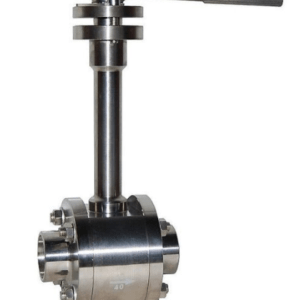

Cryogenic Ball Valve
Body: SS304, SS316, CF8, CF8M
Bonnet: Stainless Steel
Stem: Stainless Steel
Seal: PTFE
Packing: Graphite
Nominal Diameter: DN15 to DN65
Nominal Pressure: PN16 to PN64
End Connection: Buttweld, Threaded or Welded
Dimension
PN16 Unit: mm
| DN | H | L | B | D0 | D1 | E |
| 15 | 193 | 82 | 10 | 15 | 19 | 180 |
| 25 | 218 | 82 | 12 | 25 | 33 | 200 |
| 40 | 246 | 113 | 15 | 40 | 46 | 200 |
| 50 | 336 | 157 | 15 | 50 | 58 | 360 |
| 65 | 450 | 177 | 15 | 65 | 77 | 360 |
Cryogenic Pneumatic Actuated Globe Valve Body: SS304, SS316, CF8, CF8M, F304, F316 Bonnet: Steel Stem Disc: Steel Disc: Steel Disc Seal ring: PTFE Nominal Diameter: DN10 to DN100 Nominal Pressure: PN1.6 to 6.4MPa Cylinder Source Pressure: PN0.3 to 0.6PMa Suitable Media: LO2,LN2,LAr,LNG,etc Suitable Temperature: -196℃ to +70℃ Emergency Cut-off Temperature: +75±5℃ Dimension DN H L <
Cryogenic Check Valve Body: CF8, CF8M, SS304, SS316, F304, F316 Bonnet: Stainless Steel Disc: Stainless Steel Stuffing: PTFE Disc Seal ring: PTFE Nominal Diameter: DN10 to DN80 Nominal Pressure: PN40MPa Suitable Media: LO2,LN2,LAr,LNG,LCO2,etc Suitable Temperature: -80℃ to +80℃ Connection Type: Buttweld, Socketweld, Flanged Dimension PN16 Unit: mm <table
Cryogenic Gate Valve Body: SS304, SS316, SS316L, F304, F316 Bonnet: Stainless Steel Stem:Stainless Steel Packing: PTFE Disc face ring :PTFE Nominal diameter: DN15 to DN50 Nominal Pressure: PN16, PN25, PN40, PN64, Class150, Class300,Class800 Applicable medium: O2, N2, Ar, LNG Applicable temperature: -80℃ to +80℃ Dimension PN16 Unit: mm
Cryogenic Steam Jacket Globe Valve Body: SS304, SS316, F304, F316 Bonnet: Stainless Steel Stem: Stainless Steel Stuffing: PTFE Seal ring: PTFE Nominal Diameter: DN10 to DN50 Nominal Pressure: PN1.6 to 6.4MPa, Class150, Class300 Suitable Media: LNG,LO2,LN2,LAr,etc Suitable Temperature: -196℃ to +80℃ Connection Type:Socket welding Heat Insulating Type:PU insulation Dimension PN16
Cryogenic long Stem Globe Valve Body: F304, F316, SS304, SS316 Bonnet: Stainless Steel Stem: Stainless Steel Packing: PTFE Disc face ring: PTFE Nominal Diameter: DN10 to DN100 Nominal Pressure: PN16, PN25, PN40, PN64, Class150, Class300 Applicable medium: O2, N2, Ar, LNG Applicable temperature: -80℃ to +80℃ Dimension PN16
Cryogenic Short Stem Globe Valve Body: F304, F316, SS304, SS316 Stem: Stainless Steel Bonnet: Stainless Steel Packing: PTFE Disc Face Ring: PTFE Nominal Diameter: DN10 to DN100 Nominal Pressure: PN16 to PN64 End Connection: Buttweld, Threaded or welded, Socketweld Dimension PN16 Unit: mm DN H(on)</
Cryogenic Emergency Cut Off Valve Body: SS304, SS316, F304, F316 Bonnet: Stainless Steel Stem: Stainless Steel Seal Ring: PTFE Nominal Diameter: DN10 to DN100 Nominal Pressure: PN16 to PN64 Temperature: -196℃ to +70℃ Dimension PN16 Unit: mm DN H L L1 D D1 D2</
