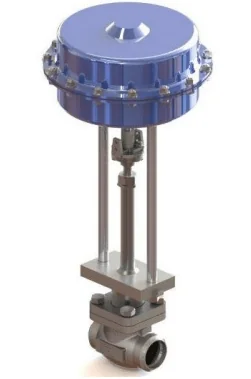

Cryogenic Pneumatic Actuated Globe Valve
Body: SS304, SS316, CF8, CF8M, F304, F316
Bonnet: Steel
Stem Disc: Steel
Disc: Steel
Disc Seal ring: PTFE
Nominal Diameter: DN10 to DN100
Nominal Pressure: PN1.6 to 6.4MPa
Cylinder Source Pressure: PN0.3 to 0.6PMa
Suitable Media: LO2,LN2,LAr,LNG,etc
Suitable Temperature: -196℃ to +70℃
Emergency Cut-off Temperature: +75±5℃

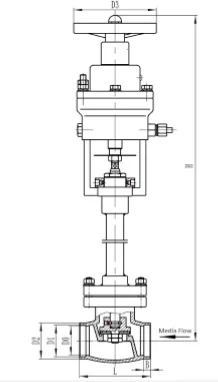

Dimension
| DN | H | L | D | D1 | D2 | b |
| 10 | 448 | 61 | 100 | 10 | 14.5 | 6 |
| 15 | 448 | 61 | 100 | 15 | 18.5 | 6 |
| 20 | 515 | 81 | 100 | 22 | 24.5 | 6 |
| 25 | 515 | 81 | 110 | 26 | 28.5 | 6 |
| 32 | 571 | 102 | 110 | 32 | 38.5 | 9 |
| 40 | 571 | 102 | 110 | 42 | 45.5 | 9 |
| 50 | 622 | 127 | 110 | 54 | 58 | 10 |
| 65 | 622 | 127 | 110 | 68 | 71 | 10 |
| 80 | 675 | 152 | 110 | 84 | 89 | 17 |
| 100 | 675 | 152 | 110 | 104 | 109 | 15 |
Cryogenic Check Valve Body: CF8, CF8M, SS304, SS316, F304, F316 Bonnet: Stainless Steel Disc: Stainless Steel Stuffing: PTFE Disc Seal ring: PTFE Nominal Diameter: DN10 to DN80 Nominal Pressure: PN40MPa Suitable Media: LO2,LN2,LAr,LNG,LCO2,etc Suitable Temperature: -80℃ to +80℃ Connection Type: Buttweld, Socketweld, Flanged Dimension PN16 Unit: mm <table
Cryogenic Gate Valve Body: SS304, SS316, SS316L, F304, F316 Bonnet: Stainless Steel Stem:Stainless Steel Packing: PTFE Disc face ring :PTFE Nominal diameter: DN15 to DN50 Nominal Pressure: PN16, PN25, PN40, PN64, Class150, Class300,Class800 Applicable medium: O2, N2, Ar, LNG Applicable temperature: -80℃ to +80℃ Dimension PN16 Unit: mm
Cryogenic Ball Valve Body: SS304, SS316, CF8, CF8M Bonnet: Stainless Steel Stem: Stainless Steel Seal: PTFE Packing: Graphite Nominal Diameter: DN15 to DN65 Nominal Pressure: PN16 to PN64 End Connection: Buttweld, Threaded or Welded Dimension PN16 Unit: mm DN H L B D0 D1</t
Cryogenic Steam Jacket Globe Valve Body: SS304, SS316, F304, F316 Bonnet: Stainless Steel Stem: Stainless Steel Stuffing: PTFE Seal ring: PTFE Nominal Diameter: DN10 to DN50 Nominal Pressure: PN1.6 to 6.4MPa, Class150, Class300 Suitable Media: LNG,LO2,LN2,LAr,etc Suitable Temperature: -196℃ to +80℃ Connection Type:Socket welding Heat Insulating Type:PU insulation Dimension PN16
Cryogenic long Stem Globe Valve Body: F304, F316, SS304, SS316 Bonnet: Stainless Steel Stem: Stainless Steel Packing: PTFE Disc face ring: PTFE Nominal Diameter: DN10 to DN100 Nominal Pressure: PN16, PN25, PN40, PN64, Class150, Class300 Applicable medium: O2, N2, Ar, LNG Applicable temperature: -80℃ to +80℃ Dimension PN16
Cryogenic Short Stem Globe Valve Body: F304, F316, SS304, SS316 Stem: Stainless Steel Bonnet: Stainless Steel Packing: PTFE Disc Face Ring: PTFE Nominal Diameter: DN10 to DN100 Nominal Pressure: PN16 to PN64 End Connection: Buttweld, Threaded or welded, Socketweld Dimension PN16 Unit: mm DN H(on)</
Cryogenic Emergency Cut Off Valve Body: SS304, SS316, F304, F316 Bonnet: Stainless Steel Stem: Stainless Steel Seal Ring: PTFE Nominal Diameter: DN10 to DN100 Nominal Pressure: PN16 to PN64 Temperature: -196℃ to +70℃ Dimension PN16 Unit: mm DN H L L1 D D1 D2</
