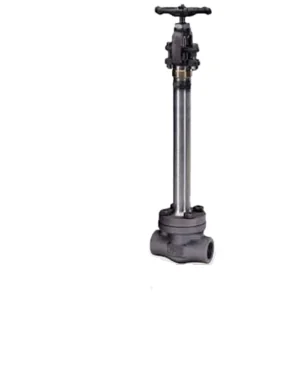

Cryogenic long Stem Globe Valve
Body: F304, F316, SS304, SS316
Bonnet: Stainless Steel
Stem: Stainless Steel
Packing: PTFE
Disc face ring: PTFE
Nominal Diameter: DN10 to DN100
Nominal Pressure: PN16, PN25, PN40, PN64, Class150, Class300
Applicable medium: O2, N2, Ar, LNG
Applicable temperature: -80℃ to +80℃

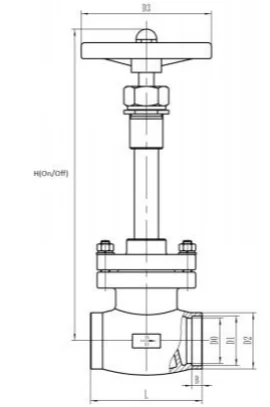

Dimension
PN16 Unit: mm
| DN | H(on) | H(off) | L | D | D1 | D2 | b |
| 10 | 255 | 245 | 61 | 65 | 10 | 14.5 | 6 |
| 15 | 255 | 246 | 61 | 65 | 15 | 18.5 | 6 |
| 20 | 302 | 289 | 81 | 80 | 22 | 24.5 | 6 |
| 25 | 302 | 289 | 81 | 80 | 26 | 28.5/32.5 | 6 |
| 32 | 355 | 340 | 102 | 100 | 32 | 38.5 | 9 |
| 40 | 356 | 340 | 102 | 100 | 42 | 45.5 | 9 |
| 50 | 391 | 370 | 127 | 137 | 54 | 58 | 10 |
| 65 | 435 | 413 | 150 | 205 | 68 | 71 | 10 |
| 80 | 486 | 516 | 182 | 202 | 84 | 89 | 17 |
| 100 | 564 | 531 | 200 | 213 | 104 | 109 | 15 |
Cryogenic Pneumatic Actuated Globe Valve Body: SS304, SS316, CF8, CF8M, F304, F316 Bonnet: Steel Stem Disc: Steel Disc: Steel Disc Seal ring: PTFE Nominal Diameter: DN10 to DN100 Nominal Pressure: PN1.6 to 6.4MPa Cylinder Source Pressure: PN0.3 to 0.6PMa Suitable Media: LO2,LN2,LAr,LNG,etc Suitable Temperature: -196℃ to +70℃ Emergency Cut-off Temperature: +75±5℃ Dimension DN H L <
Cryogenic Check Valve Body: CF8, CF8M, SS304, SS316, F304, F316 Bonnet: Stainless Steel Disc: Stainless Steel Stuffing: PTFE Disc Seal ring: PTFE Nominal Diameter: DN10 to DN80 Nominal Pressure: PN40MPa Suitable Media: LO2,LN2,LAr,LNG,LCO2,etc Suitable Temperature: -80℃ to +80℃ Connection Type: Buttweld, Socketweld, Flanged Dimension PN16 Unit: mm <table
Cryogenic Gate Valve Body: SS304, SS316, SS316L, F304, F316 Bonnet: Stainless Steel Stem:Stainless Steel Packing: PTFE Disc face ring :PTFE Nominal diameter: DN15 to DN50 Nominal Pressure: PN16, PN25, PN40, PN64, Class150, Class300,Class800 Applicable medium: O2, N2, Ar, LNG Applicable temperature: -80℃ to +80℃ Dimension PN16 Unit: mm
Cryogenic Ball Valve Body: SS304, SS316, CF8, CF8M Bonnet: Stainless Steel Stem: Stainless Steel Seal: PTFE Packing: Graphite Nominal Diameter: DN15 to DN65 Nominal Pressure: PN16 to PN64 End Connection: Buttweld, Threaded or Welded Dimension PN16 Unit: mm DN H L B D0 D1</t
Cryogenic Steam Jacket Globe Valve Body: SS304, SS316, F304, F316 Bonnet: Stainless Steel Stem: Stainless Steel Stuffing: PTFE Seal ring: PTFE Nominal Diameter: DN10 to DN50 Nominal Pressure: PN1.6 to 6.4MPa, Class150, Class300 Suitable Media: LNG,LO2,LN2,LAr,etc Suitable Temperature: -196℃ to +80℃ Connection Type:Socket welding Heat Insulating Type:PU insulation Dimension PN16
Cryogenic Short Stem Globe Valve Body: F304, F316, SS304, SS316 Stem: Stainless Steel Bonnet: Stainless Steel Packing: PTFE Disc Face Ring: PTFE Nominal Diameter: DN10 to DN100 Nominal Pressure: PN16 to PN64 End Connection: Buttweld, Threaded or welded, Socketweld Dimension PN16 Unit: mm DN H(on)</
Cryogenic Emergency Cut Off Valve Body: SS304, SS316, F304, F316 Bonnet: Stainless Steel Stem: Stainless Steel Seal Ring: PTFE Nominal Diameter: DN10 to DN100 Nominal Pressure: PN16 to PN64 Temperature: -196℃ to +70℃ Dimension PN16 Unit: mm DN H L L1 D D1 D2</
