Electric Globe Control Valve

Pneumatic Angle Control Valve Body: WCB, WC6, CF8, CF8M Bonnet: WCB, WC6, CF8, CF8M Seat: SS304, SS316, Stellite Plug Metal Sealing: SS304, SS316, Stellite Plug Soft Sealing: SS304, SS316, Stellite Cage: SS304, SS316 Guide Sleeve: SS304, SS316 Stem: SS304, SS316 Balanced Piston: Steel, Aluminium Balanced Piston Ring: Fluorine Ring, SS+Reinforced PTFE, Flexible Graphite Ring Nominal Size: DN20 to DN400 Pressure: PN 16 to PN 100, Class 150 to Class 600 End Connection: Flanged, RF, MF, R

Electric 3 Way Control Valve Body: WCB, LCB, SS304, SS316, SS316L Bonnet: WCB, LCB, SS304, SS316, SS316L Lining Material: PO, PE, PP F46, F4, PFA Bellows Material: PTFE, PFA Stem Material: 17-4PH ASTM A276 304 Nominal Diameter: DN25 to DN300 Nominal Pressure: PN16, PN25, PN40, PN64, Class150, Class 300 Input Signal: 4-20mADC, 1-5VDC Power Supply: AC220V 50HZ Flange Standard: According to HG20592-97, ANSI, JIS, DIN and other standards Dimension <table border="1" cellspacing="0"

Pneumatic Cage Control Valve Body: WCB, WC6, CF8,CF8M Lower Sleeve: Stainless Steel Valve Plug: Stainless Steel Upper Sleeve: Stainless Steel Valve Rod: Stainless Steel Gasket: Stainless Steel Stud: Stainless Steel Bonnet: WCB, WC6, CF8, CF8M Spring: Stainless Steel Stuffing: PTFE, Soft Graphite Dimensions &nbsp; &nbsp; &nbsp; DN(mm) L <td rowspan="2" width=

Electric Single Seat Control Valve Body: WCB, SS304, SS316, CF8, CF8M Bonnet: WCB, SS304, SS316, CF8, CF8M Seat: Stainless Steel Stem: Stainless Steel Packing: Graphite, PTFE Nominal Diameter: DN20 to DN200 Nominal Pressure: PN16 to PN64, Class150 to Class2500 End Connection: Flanged, Buttweld, Socketweld Dimension PN16 Unit: mm DN L</t

Electric O-type Shut off Control Valve Body: Carbon Steel , Stainless Steel Bonnet: Carbon Steel, Stainless Steel Seat: Stainless Steel Plug: Stainless Steel Stem: Stainless Steel Packing: PTFE, Graphite Nominal Diameter: DN15 to DN200 Nominal Pressure: PN16 to PN64, Class150 to Class2500 End Connection: Flanged, Buttweld, Socketweld Dimension PN16 Unit: mm DN <td

Electric Double Seat Control Valve Body: WCB, SS304, SS316, SS304L, SS316L Bonnet: WCB, SS304, SS316, SS304L, SS316L Plug: Stainless Steel Seat: Stainless Steel Gasket: PTFE, Graphite Stem: Stainless Steel Nominal Diameter: DN25 to DN200 Nominal Pressure: PN16 to PN64, Class150 to Class2500 End Connection: Flanged, Buttweld, Threaded or Welded Dimension PN16 Unit: mm DN</

Electric Cage Type Control Valve Body: Carbon Steel, Stainless Steel, Alloy Steel Bonnet: Carbon Steel, Stainless Steel, Alloy Steel Seat: Stainless Steel Seal: PTFE Plug: SS304, SS316 Stem: Stainless Steel Nominal Diameter: DN25 to DN300 Nominal Pressure: PN16 to PN64, Class150 to Class2500 End Connections: Flanged, Buttweld, Socketweld Dimensions PN16 Unit: mm

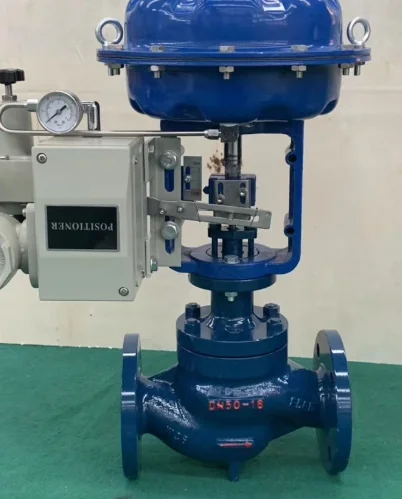

Pneumatic Actuated Globe Type Control Valve Body: Stainless Steel, Carbon Steel, Ductile Iron Bonnet: Stainless Steel, Ductile Iron , Carbon Steel Seat: Stainless Steel Gasket: PTFE, Graphite Guide Sleeve: Stainless Steel Nominal Size: DN10 to DN300 Nominal Pressure: PN16 to PN160, Class150 to Class2500 End Connection: Flanged, Socketweld, Butweld Dimension PN16 Unit: mm <tbody

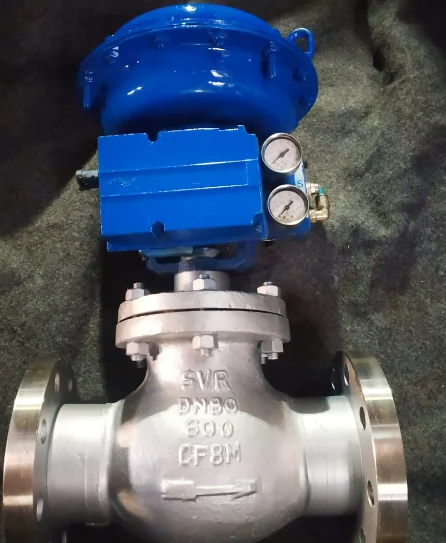

Pneumatic Sleeve Type Control Valve Body: WCB, CF8, CF8M, SS304, SS316 Bonnet: WCB, CF8, CF8M, SS304, SS316 Seat: Stainless Steel Gasket: Flexible Graphite+Stainless Steel Packing: PTFE Stem: Stainless Steel End Connections: Flanged, Buttweld, Socketweld Nominal Size: DN25 to DN300 Nominal Pressure: PN16 to PN64, Class150 to Class2500 Actuation: Double Acting, Spring Return Dimension PN16 Uni

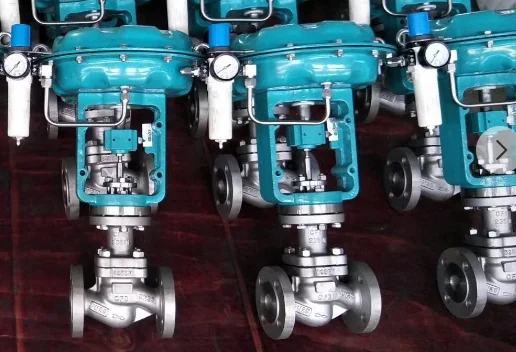

Pneumatic Single Seat Globe Control Valve Body: SS304, SS316, CF8, CF8M, F304, F316, WCB Bonnet: CS, SS304, SS316 Packing: Graphite, PTFE Stem: Stainless Steel Nominal Diameter: DN20 to DN200 Nominal Pressure: PN16 to PN64, Class150 to Class2500 End Connection: Buttweld, Socketweld, Flanged Actuation Type: Double Acting, Spring Return Dimension PN16 Unit: mm DN A</td

Pneumatic Flow Control Valve Body: WCB, SS304, SS316, CF8, CF8M, WCC Bonnet: Carbon Steel, Stainless Steel Stem: Stainless Steel Packing: PTFE Plug: Carbon Steel, Stainless Steel Nominal Diameter: DN20 to DN200 Nominal Pressure: PN16 to PN64, Class150 to Class2500 Actuation Type: Double Acting, Spring Return End Connection: Flanged, Buttweld, Socketweld Dimension PN16 Unit: mm DN<

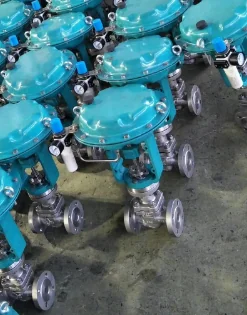

Pneumatic Double Seat Control Valve Body: Stainless Steel, Carbon Steel Bonnet: Carbon Steel, Stainless Steel Plug: SS304, SS316, Stellite Gasket: Stainless Steel Nominal Diameter: DN25 to DN300 Nominal Pressure: PN16 to PN64, Class150 to Class2500 End Connection: Flanged, Socketweld, Buttweld Actuation Type: Double Acting, Spring Return Dimension PN16 Unit: mm DN <td width
